Description

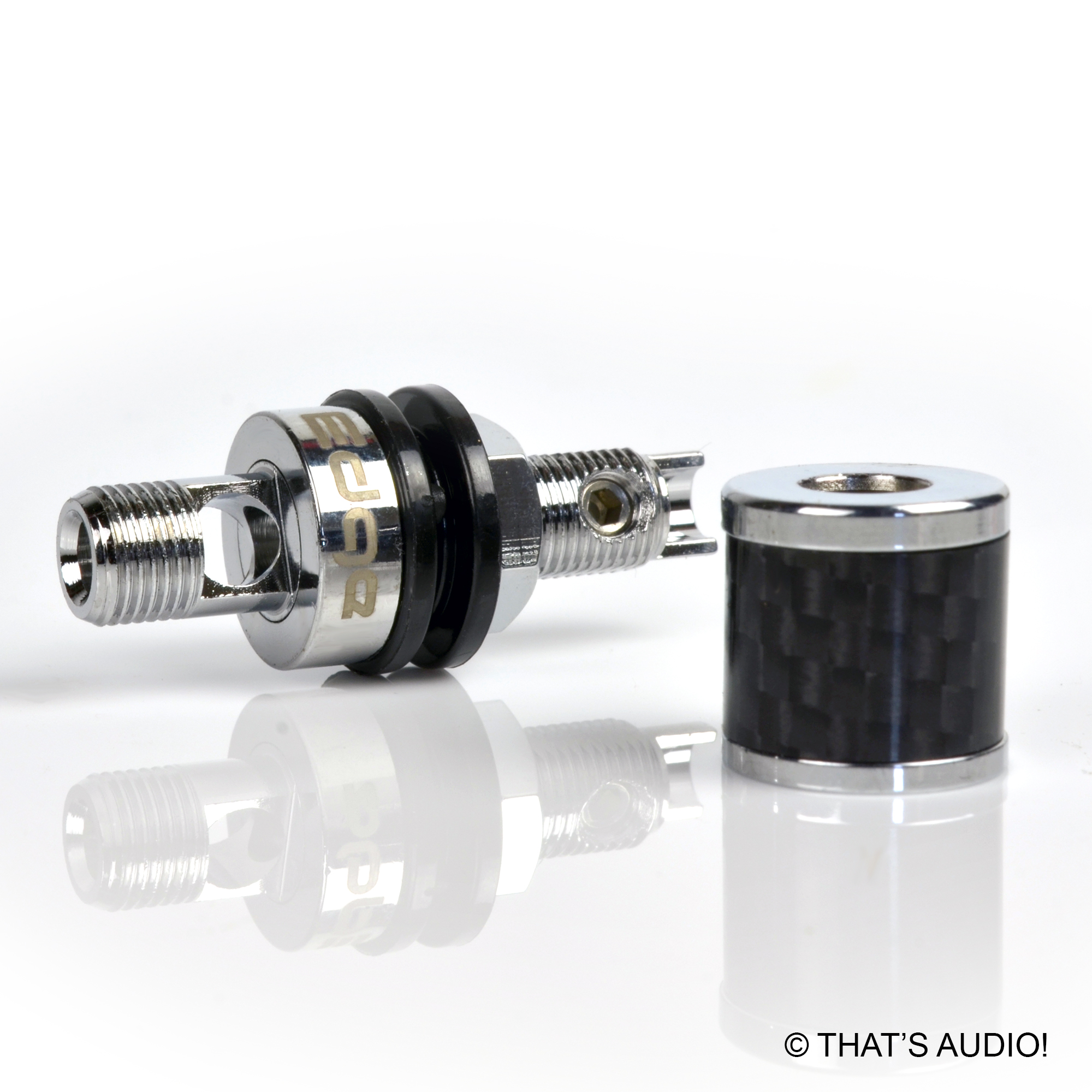

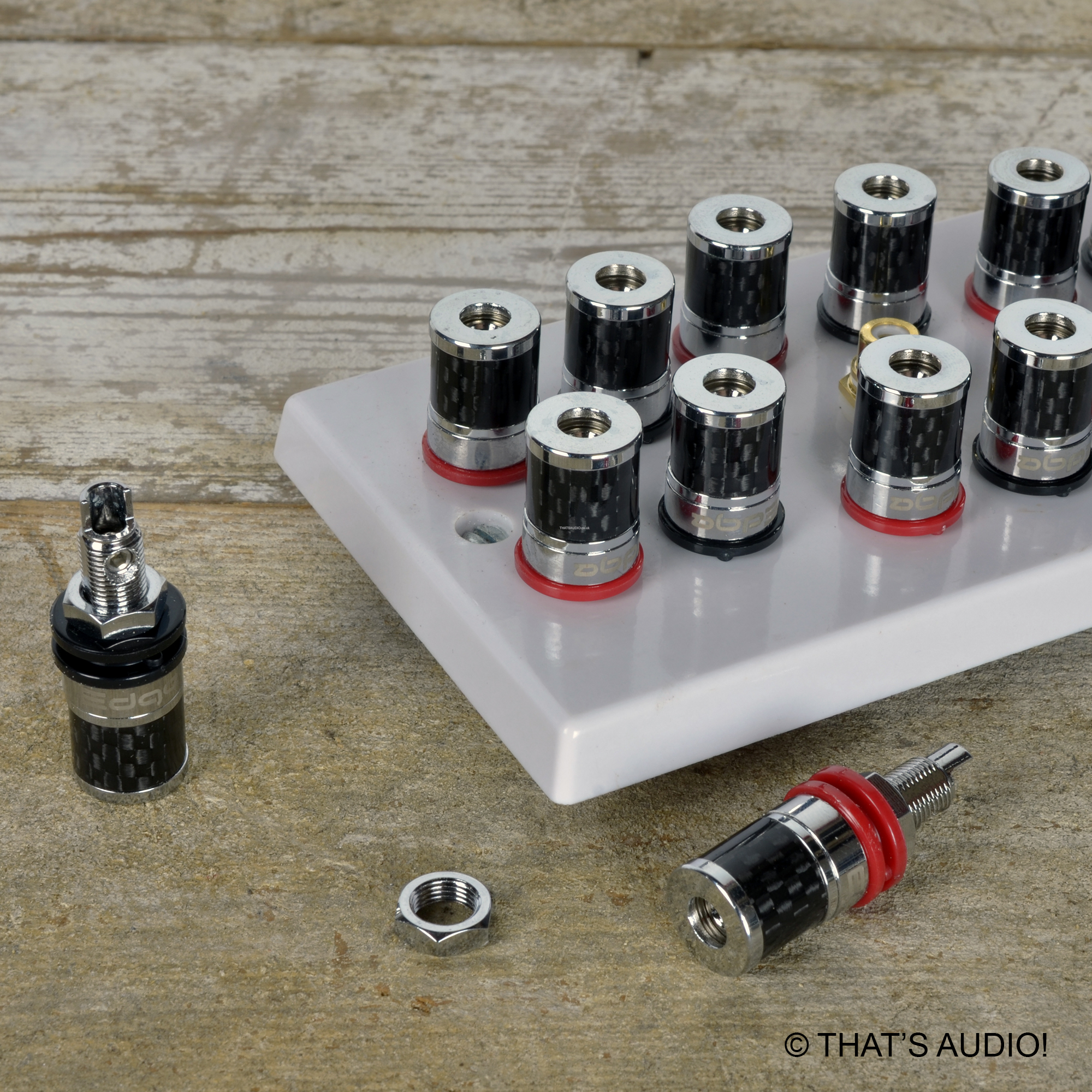

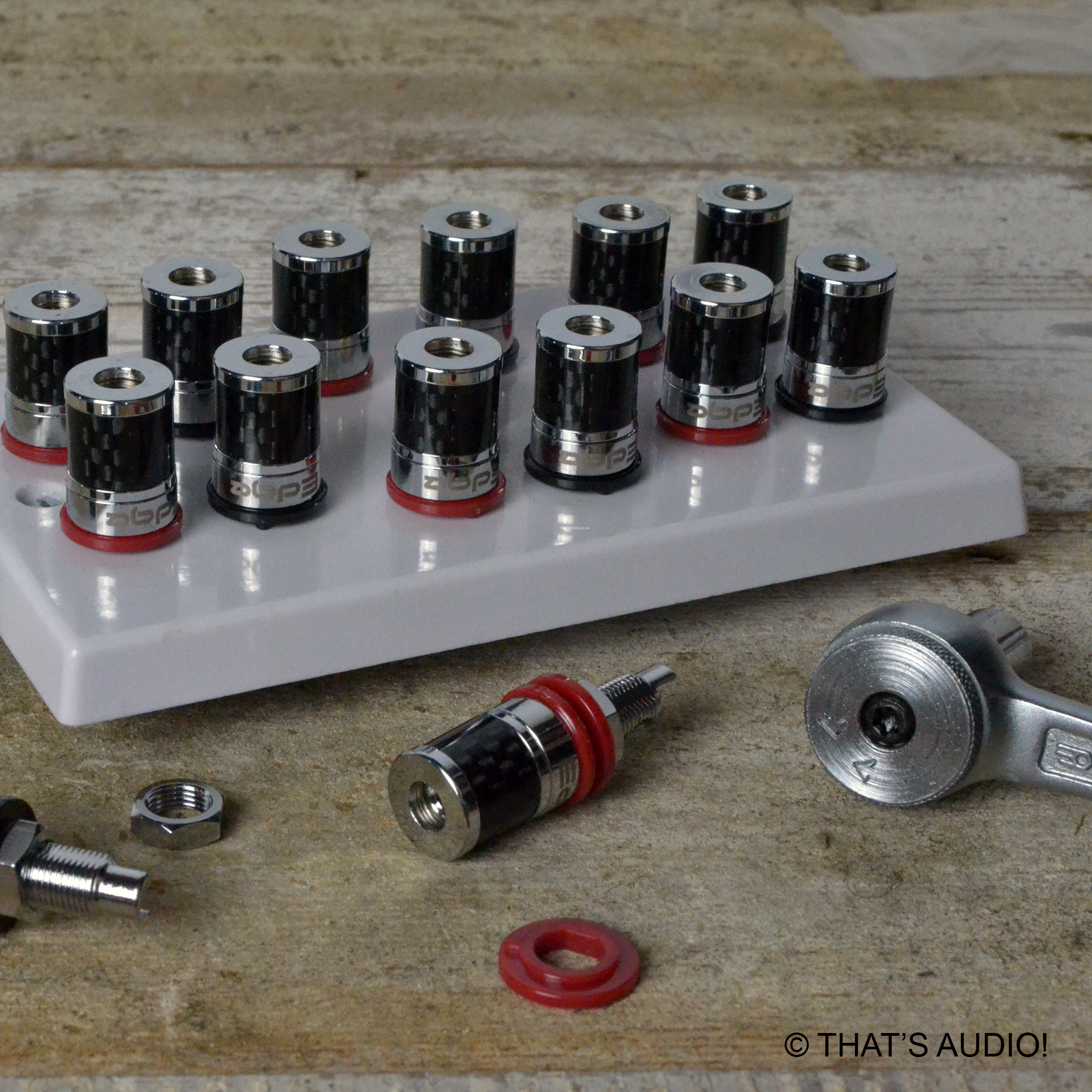

EDGE Premium Binding Posts. Suitable for use with 4mm banana plugs or bare audio cable. This stylish binding post consists of a black carbon fibre outer shell for durability and a sharp modern design. Binding posts are mounted on loudspeakers, audio amplifiers and speaker cable wall plates, and secure the speaker cable in place. Speaker cables, terminated with Banana plugs, are inserted into the top open end of the binding post. Other methods of connection of speaker cable can be made via bare wire inserted into the cross hole / wrapped around the metal post, and securely clamped in place via the thumbscrew.
These Binding posts are ideal for replacing many binding posts found on speakers and amplifiers although please note that that some appliances may not have the internal clearance to enable these posts to be fitted. Do check the internal clearance before ordering.
- Audio Connector
- Binding Post (For standard 4mm Banana Plugs or bare wire) SOLDER or GRUB screw internal connection
- BRAND: EDGE
- PACK QTY: 4 Pack
- MATERIAL: Rhodium plated, provides excellent resistance to corrosion aiding signal conductivity. Carbon fibre shell provides for a durable and stylish plug. Colour co-ordinated collars to ensure correct channel selection
- DIMENSIONS: Total length 42.5mm approx x 14mm (width) – 20mm (length) external to amp chassis, 18mm internal clearance required. Width of threaded part approx 9mm

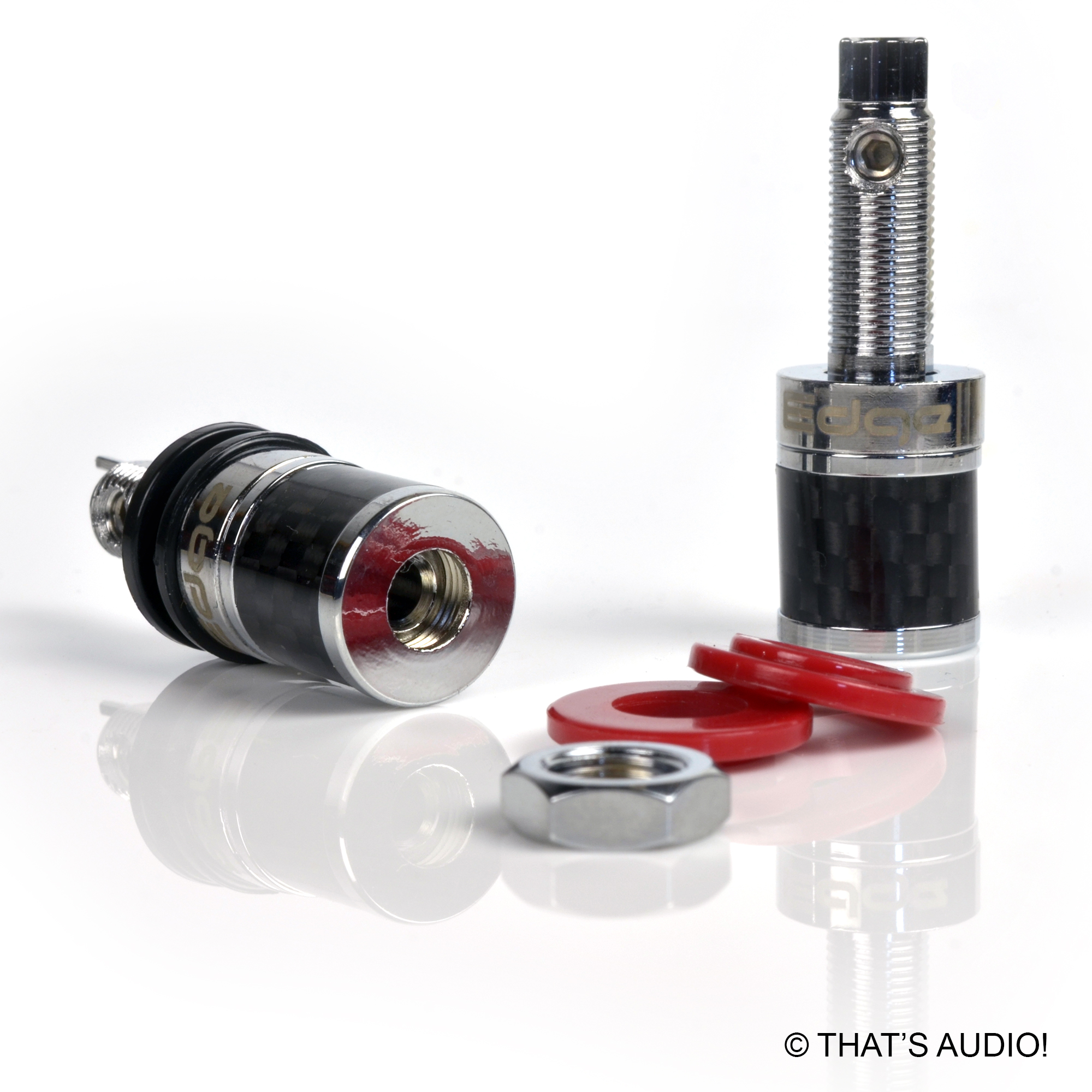

- FASTENING TYPE: Chassis / Panel mounted locking nut, fixes binding post securely to amplifier / speaker chassis / panel. Complete with RED or BLACK insulating washers. Grub Screw secures cable to binding post for Non solder connection, or you can also use solder in the large solder bucket

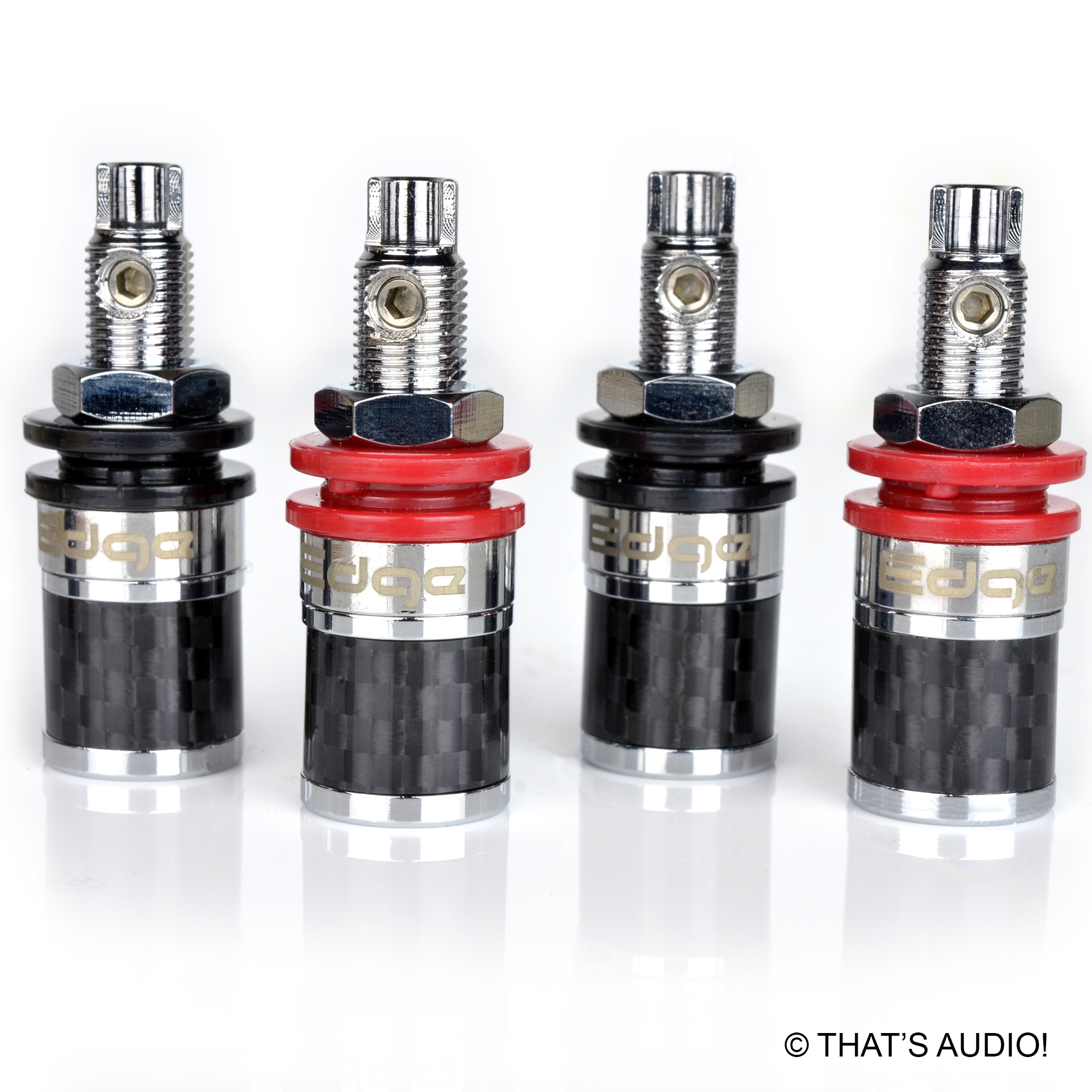

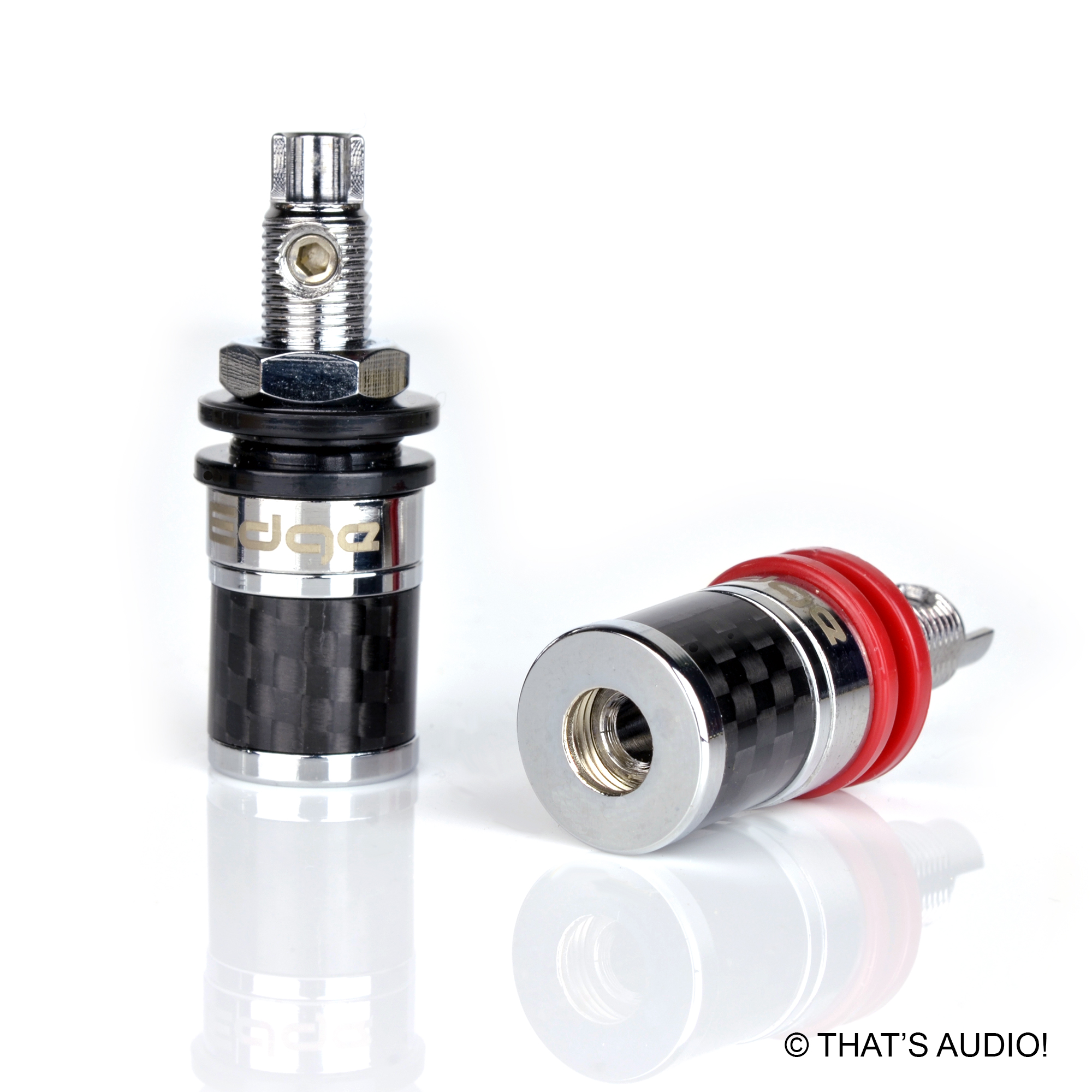

- For use with amplifiers and speaker inputs / outputs. Colour coded (Red and Black insulation collars) for channel identification
- Suitable for good quality audio products
