Description

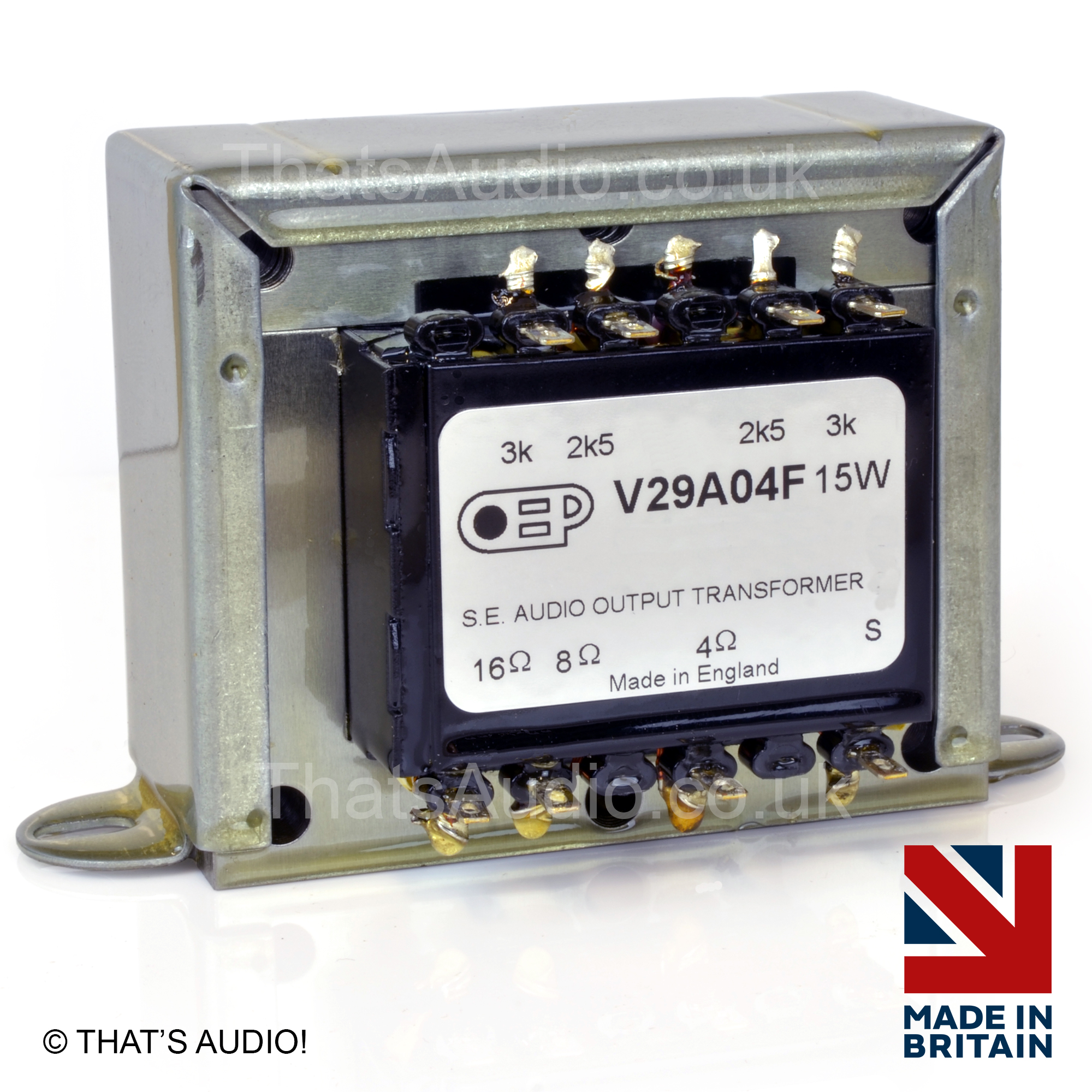

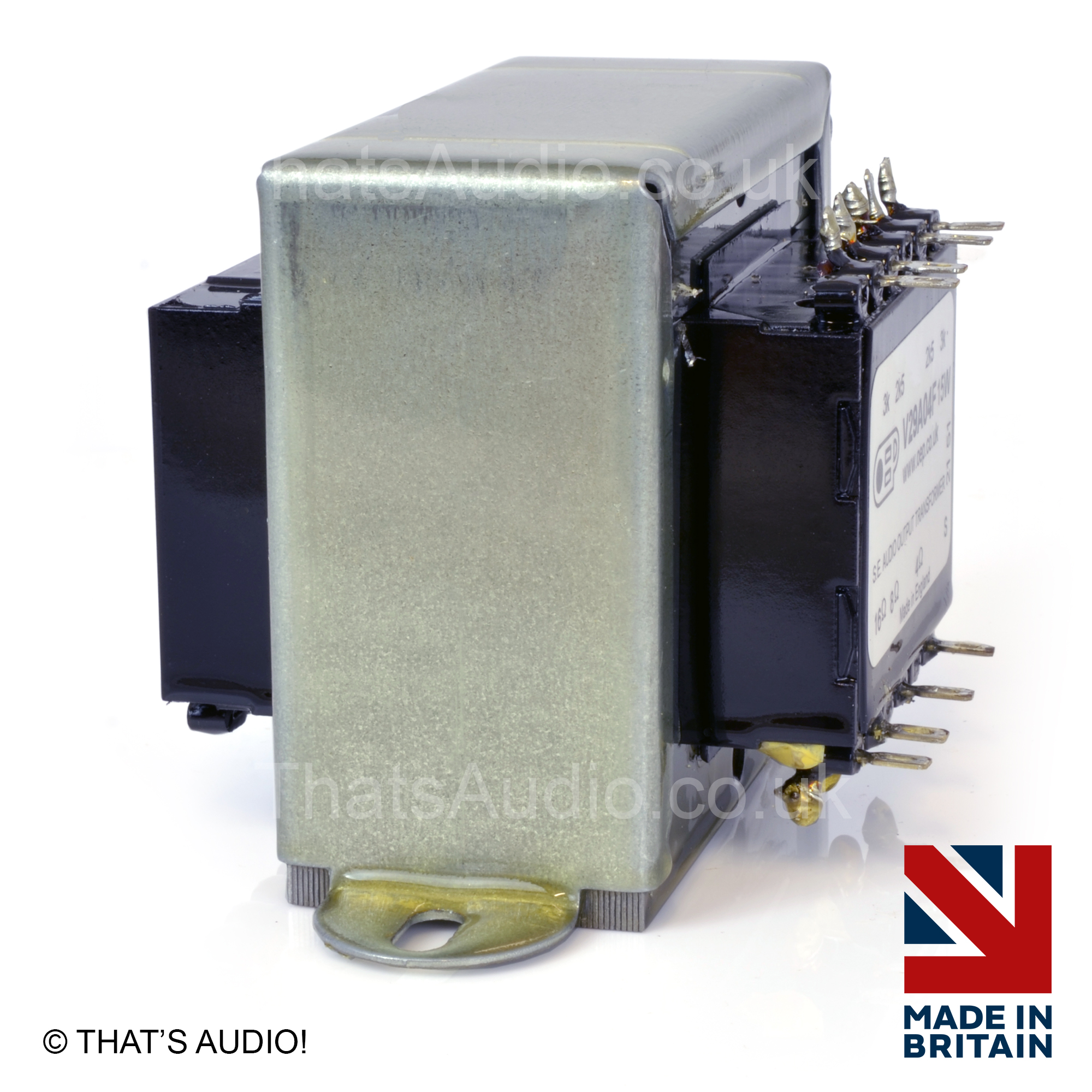

GUITAR Amplifier Output transformer
This Audio / Output transformer is part of a specialist range of output transformers for use with SINGLE ENDED guitar amplifiers.
Specially designed for use with Guitar Amplifiers, where a frequency response (aka bandwidth) of between 80Hz and 6kHz is typically required. A wider bandwidth is achieved by splitting the windings up in to several layers (or sections) this improves coupling between input and output. These transformers provide the distortion that guitarists love
- GUITAR Amplifier Output transformer
- MODEL: V29A04F
- For GUITAR Amplifiers
- Maximum Power: 15W
- Amplifier Application: SINGLE ENDED (SE)
- Valve / Tube Application: EL34, EL84 // EL84 Valves / Tubes
- CLAMP Mounting
- Primary Impedance: 3k or 2k5,
- Secondary Impedance: 4, 8, 16 ohm taps
- Core Materials: Manufactured with grain orientated silicon steel laminations for reduced hum, low distortion, low insertion loss and stray field.
- Mass: 1.3kg
- Brand: Oxford Electrical Products (CARNHILL GROUP)
- Made in OXFORD, ENGLAND (UK)
Oxford Electrical Products (OEP) was founded in 1982, and has established itself as a globally trusted brand for the design and manufacture of transformers and power supplies.
This transformer is part of a specialist range of audio transformers for valve amplifiers, that are designed and manufactured from OEP’s factory in Oxford, England. This design and manufacturing expertise enables OEP to maintain a close control over production, ensuring that each transformer is manufactured to the strict specifications that their designer intended. This build quality directly governs the efficiency of the transformer for excellent sound quality and reliability.
