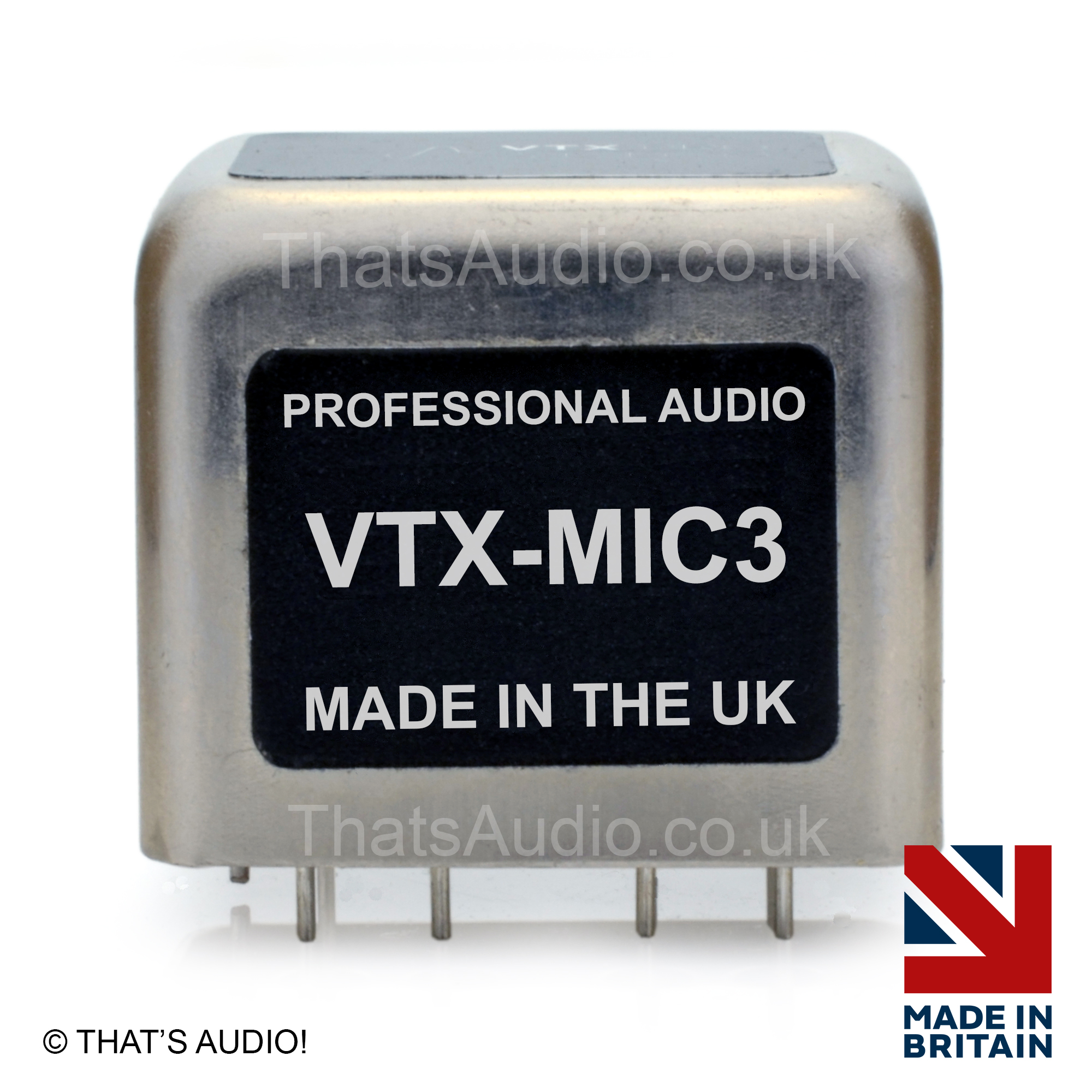

Microphone Input Transformer VTX-MIC3

1 CT : 3.5+3.5 150(Ω) 0dBu PCB mounting

Microphone Input Transformer VTXMIC3 – designed specifically for impedance matching with the pre-amplifier stage

• for mic pre-amp input circuits to match microphones to pre-amp
• for tube microphones for matching high impedance tube circuits to normal output impedance
• for ribbon microphones to transform very low voltage, very low impedance ribbon motors to normal microphone output levels

Transformer Data Sheet – Click to open and DOWNLOAD

Microphone Input Transformer VTXMIC3

• Microphone input transformer
  Input impedance: 150 ohms
  Input 0dBu max. (@ 20Hz) <1%THD
  Frequency response +/-0.2dB (20Hz – 40kHz)
  Hi-pot, primary to secondaries: 500VDC
  Windings to screens+can: 500VDC
• Fitted with multiple electrostatic screens
  Low distortion Mu-metal core
  Mu-metal screening can reduces electrical noise by up to 30dB
  Operating temperature range: 0 to +70 C
  Storage temperature range: -25 C to +120 C
  Mass = 0.055kg

Electrical characteristics

Specification (test circuit 1):
Turns ratio: 1 to 7 C.T. (series)
DC resistance (W+/-15%)
Primary (8 – 5): 18
Secondary (1 – 4): 988
Input impedance (W): 1.5kW (typ.) @ 1kHz
Output impedance (W): 9.1kkW (typ.) @ 1kHz
Voltage gain @ 1kHz, 15.5dBu (typ.)
Maximum input @ 20Hz, <1% THD: 0dBu
Insertion loss: 0.2dB (typ.)
Leakage inductance @ 1kHz: (8 – 5) (1/2/3/4 S/C) 38mH (typ.)
Capacitance @ 10kHz, 0.1V:
Cp-s: 70pF (typ.) or 7pF (typ.) with screen earthed
Cp-scr: 150pF (typ.)
Cs-scr: 120pF (typ.)

Specification (test circuit 2):
Turns ratio: 1 to 3.5 (parallel wired)
DC resistance (W+/-15%)
Primary (8 – 5): 18
Secondary (parallel) ((1+2) – (3+4)): 516
Input impedance (W): 1.5kW (typ.) @ 1kHz
Output impedance (W): 2.29kW (typ.) @ 1kHz
Voltage gain @ 1kHz, 9.77dBu (typ.)
Maximum input @ 20Hz, <1% THD: 0dBu
Insertion loss: 0.3dB (typ.)
Leakage inductance @ 1kHz: (8 – 5) (1/2/3/4 S/C) 9mH (typ.)
Capacitance @ 10kHz, 0.1V:
Cp-s: 70pF (typ.) or 7pF (typ.) with screen earthed
Cp-scr: 150pF (typ.)
Cs-scr: 120pF (typ.)
