Description

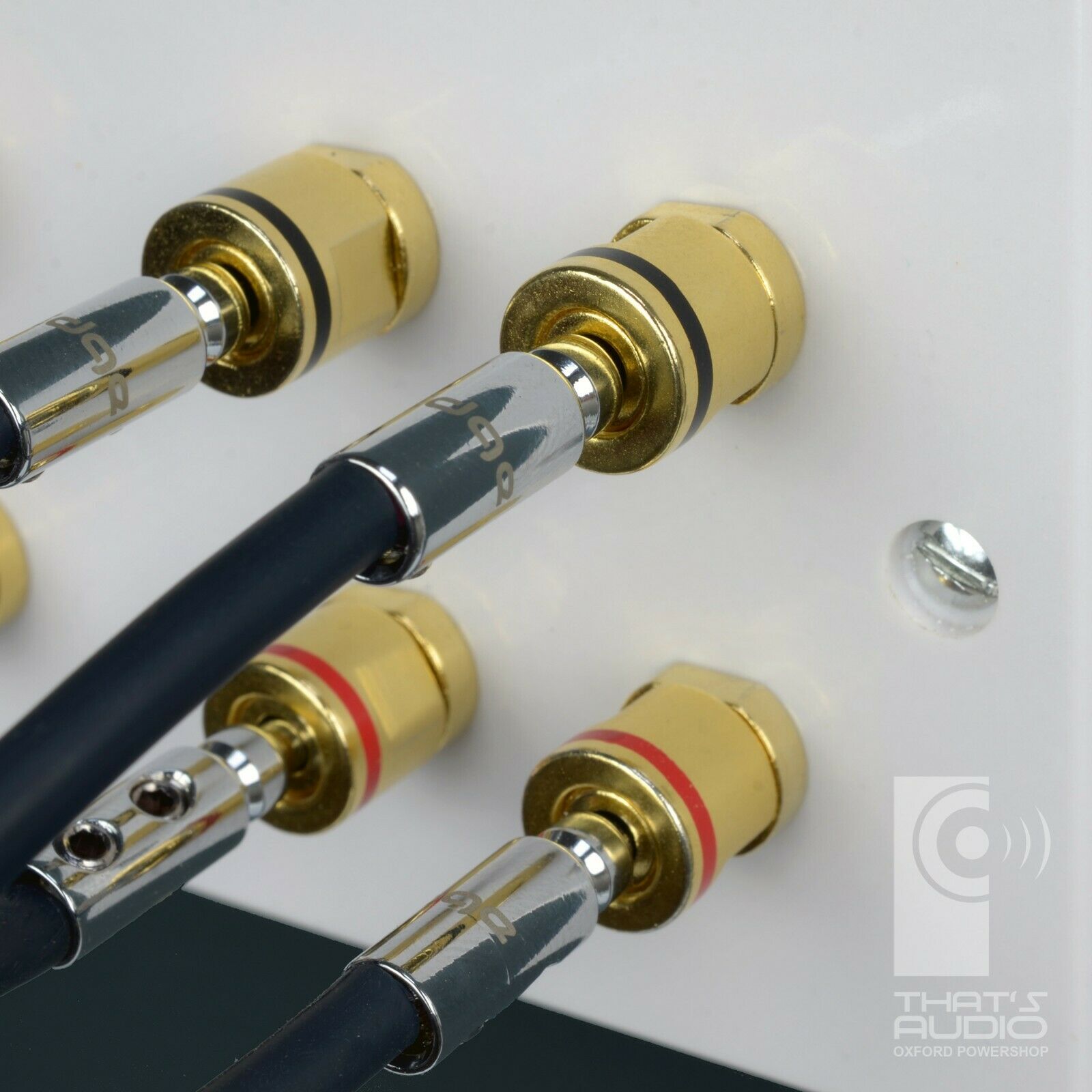

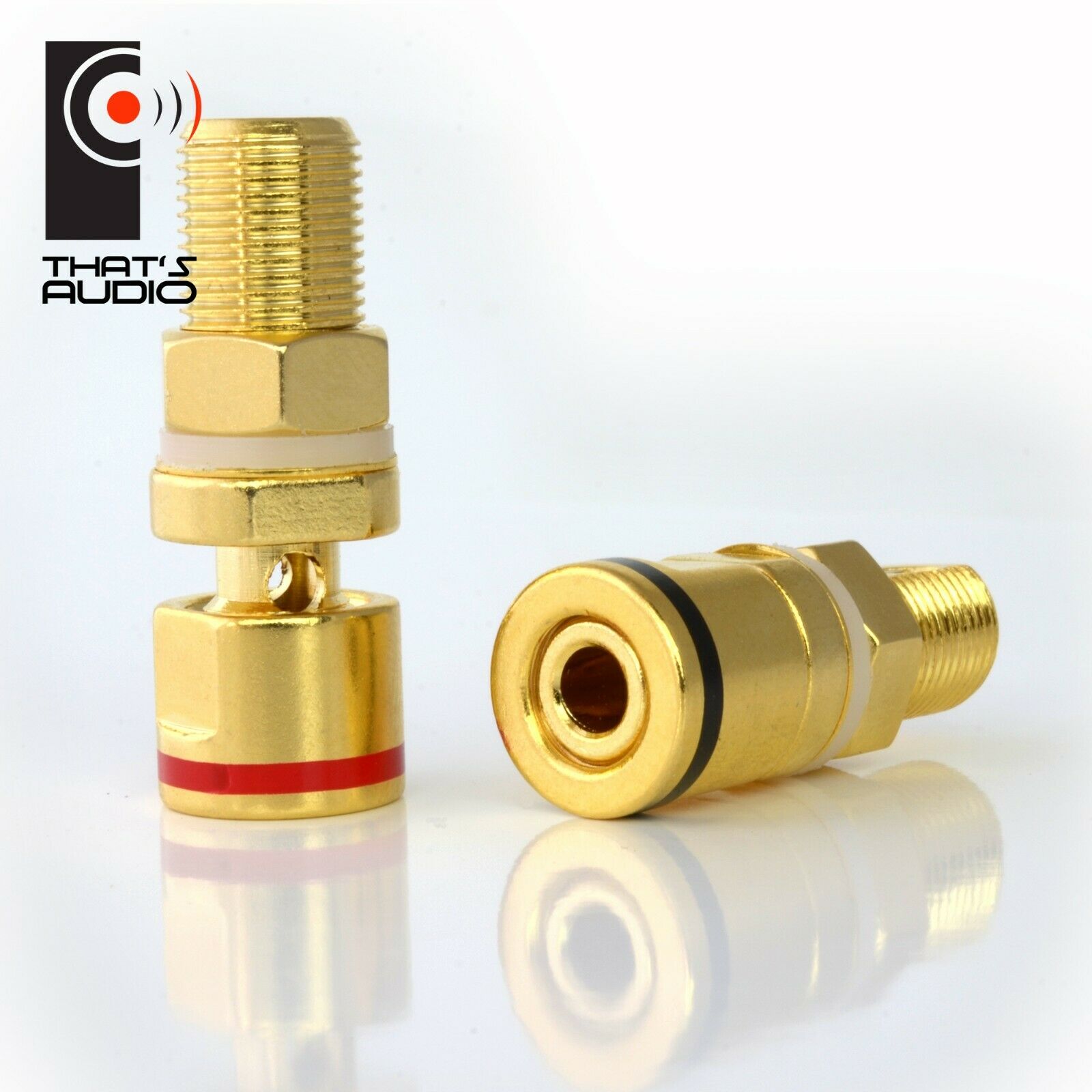

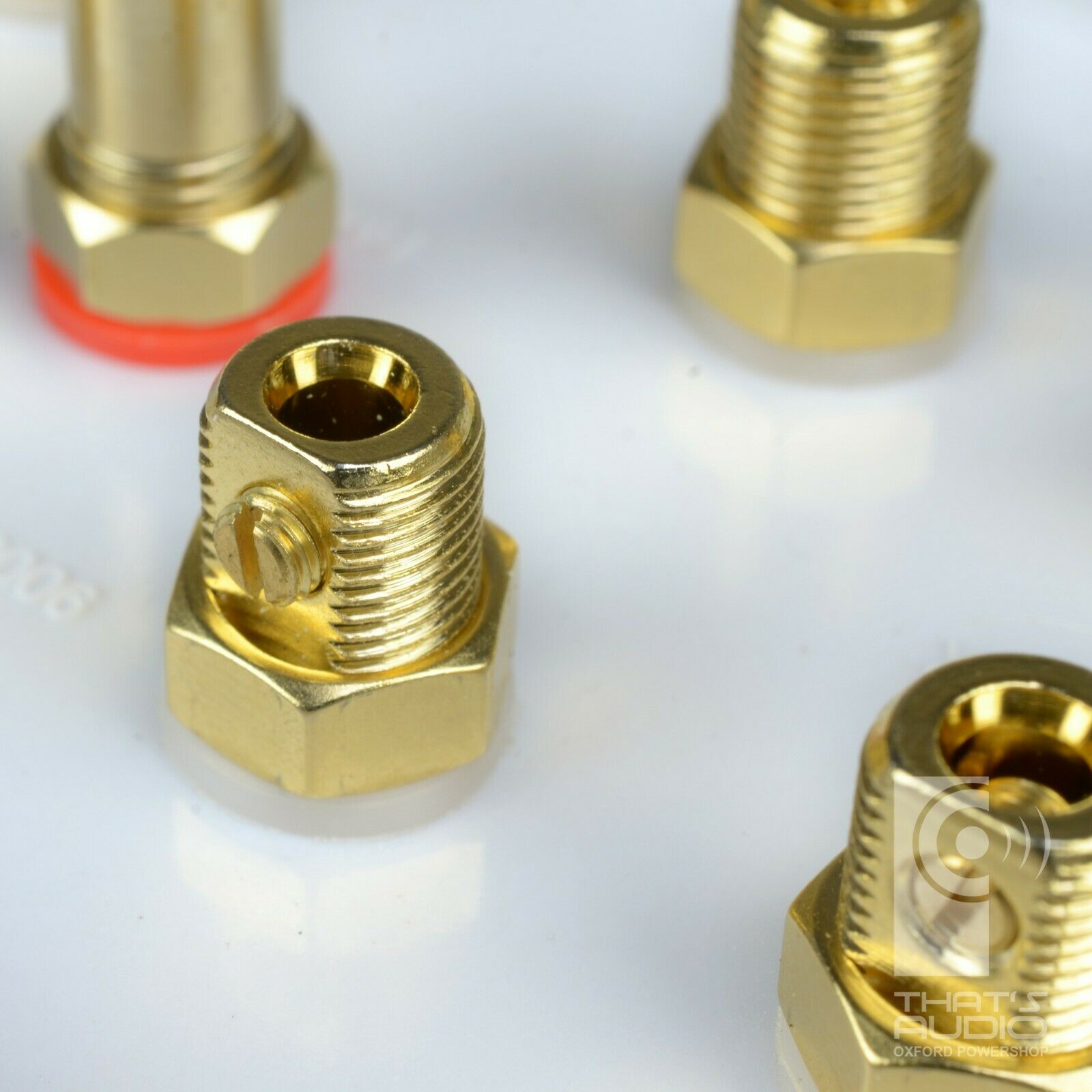

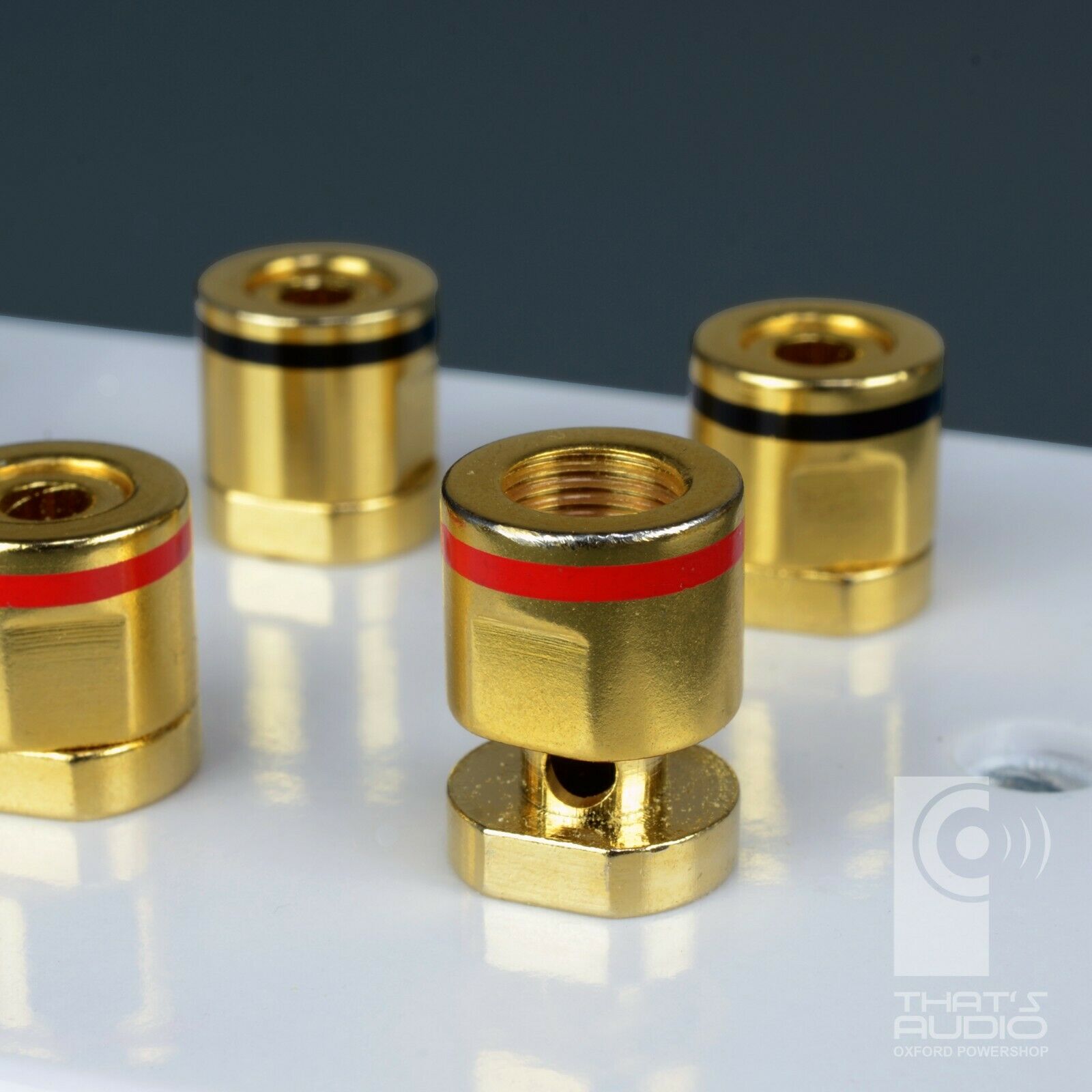

Chassis mounted gold plated Binding Posts for 4mm banana plugs. Binding posts are mounted on loudspeakers, audio amplifiers and speaker cable wall plates, and secure the speaker cable in place. Speaker cables, terminated with Banana plugs, are inserted into the top open end of the binding post. Other methods of connection of speaker cable can be made via bare wire inserted into the cross hole / wrapped around the metal post, and securely clamped in place via the thumbscrew.
These Binding posts are ideal for replacing many binding posts found on speakers and amplifiers although please note that that some appliances may not have the internal clearance to enable these posts to be fitted. Do check the internal clearance before ordering.
- Audio Connector
- Binding Post (For 4mm Bannana Plugs) Gold Plated NON SOLDER TYPE
- BRAND: EDGE
- PACK QTY: 4 Pack
- MATERIAL: GOLD Plated contacts helps reduce corrosion & provides excellent conductivity
- DIMENSIONS: Total length 31mm approx. (14mm external to amp chassis, 17mm clearance required) Width of threaded part 9mm

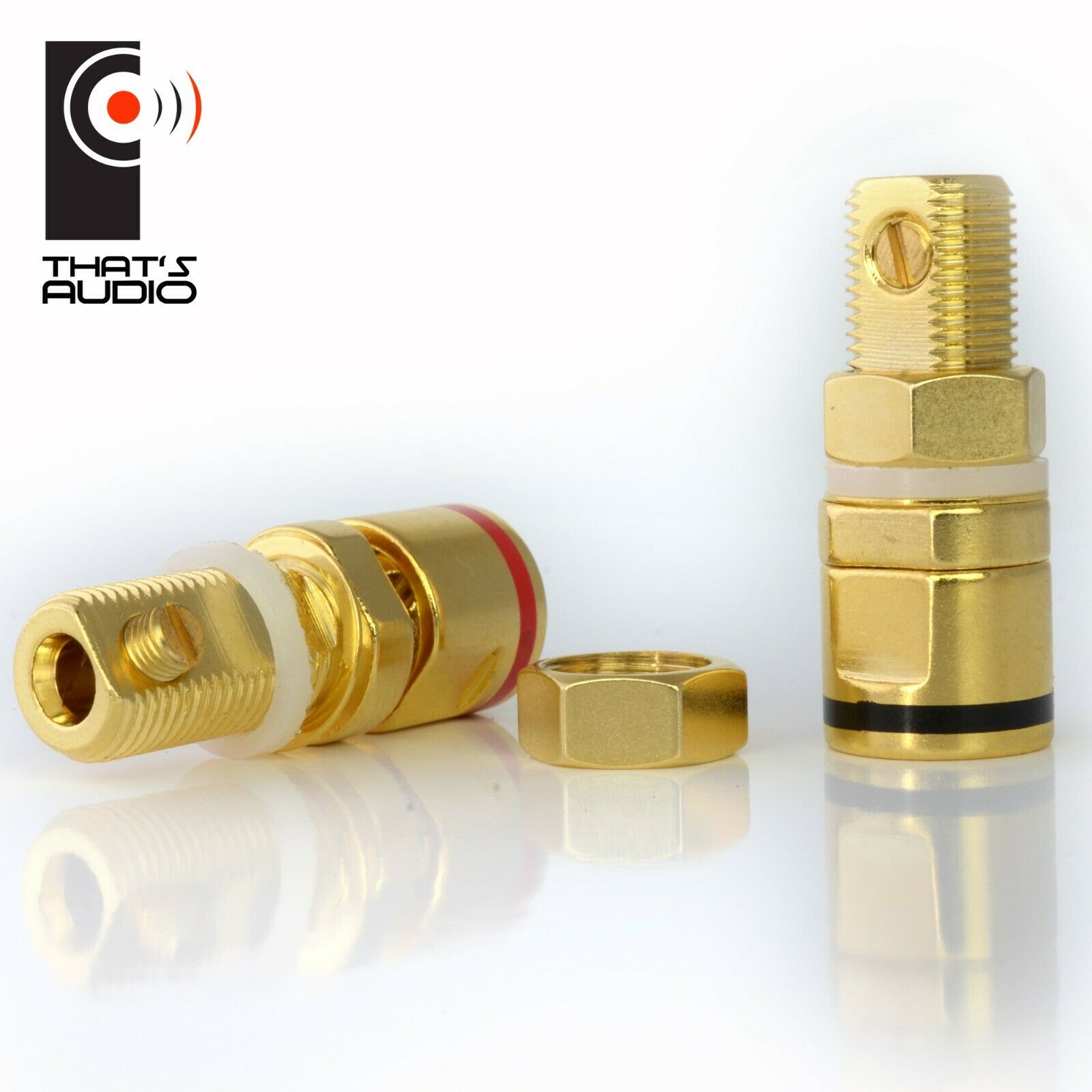

- FASTENING TYPE: Chassis / Panel mounted locking nut, fixes binding post securely to chassis / panel. Grub Screw secures cable to binind post

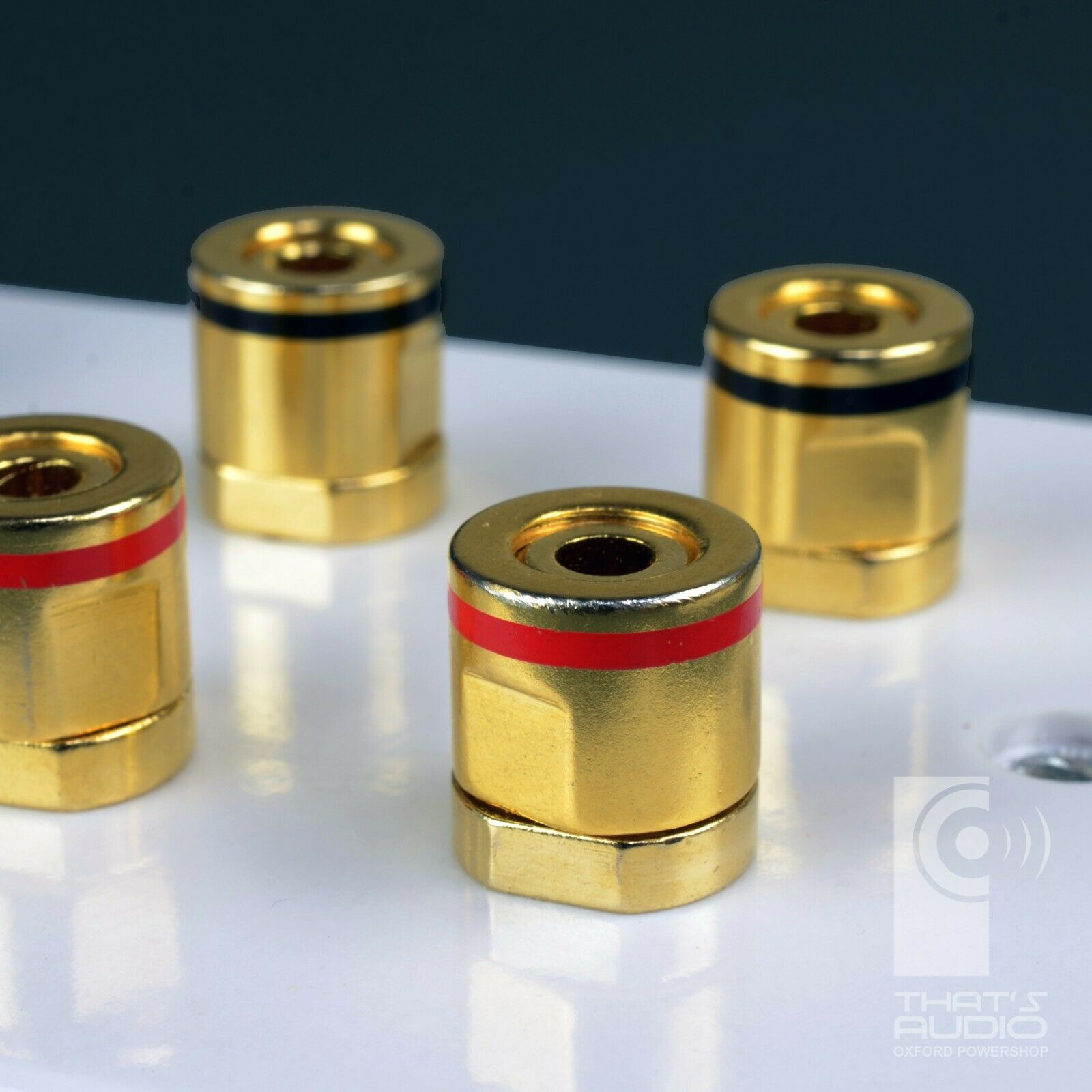

- For use with amplifiers and speaker inputs / outputs. Colour coded (Red and Black detail) for channel identification
- Suitable for good quality audio products
