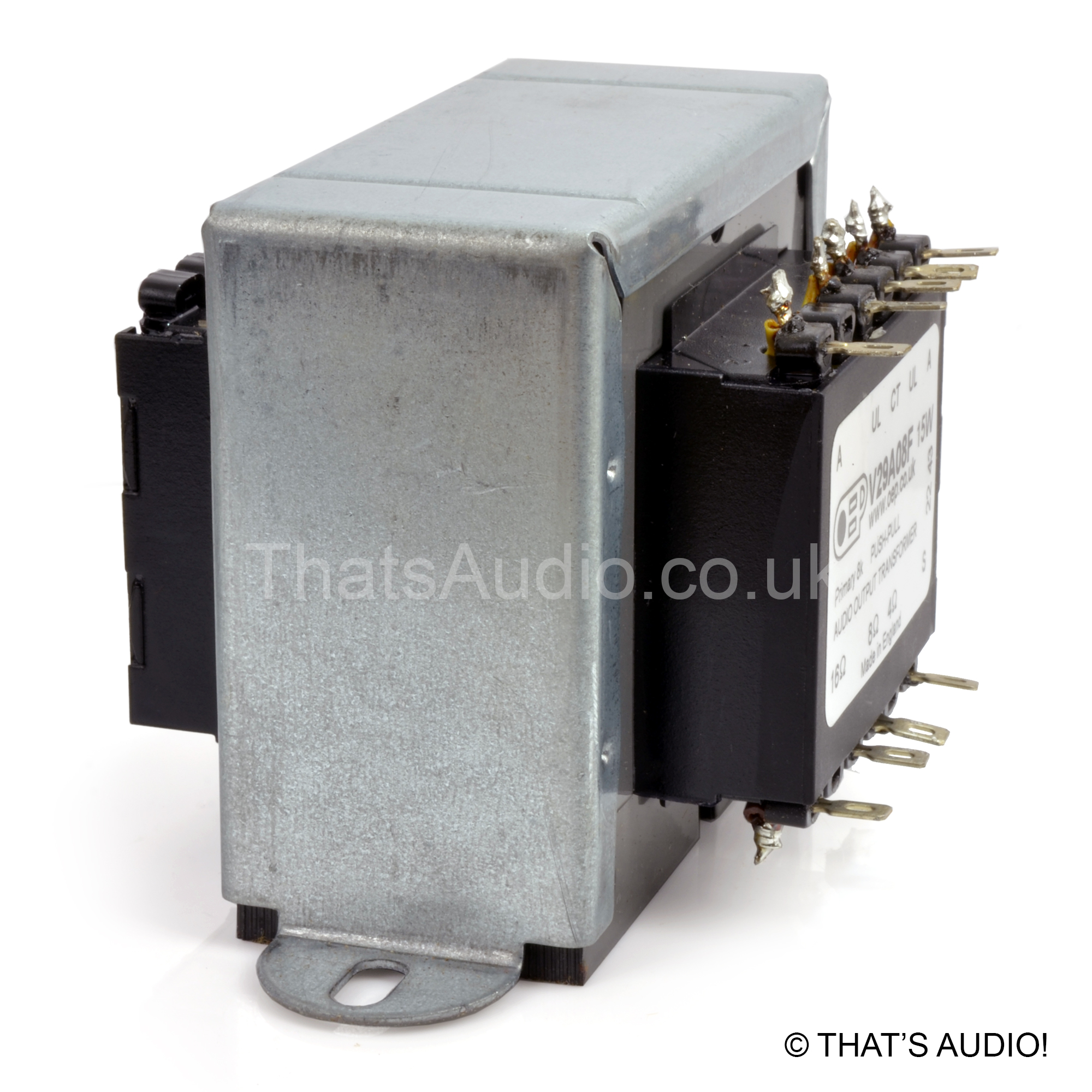

Valve Amplifier Output transformer: 15W PUSH-PULL
CLAMP MOUNTING
This valve amplifier output transformer is part of a specialist range of audio transformers for use within PUSH-PULL Hi-Fi amplifiers. Specially designed for use with Hi-Fi valve amplifiers which typically require output transformers with a frequency (bandwidth) of 20Hz to 20kHz.
- AUDIO / OUTPUT Transformer
- MODELS Available:
- V29A08F (Clamp Mounting)
- Maximum Power at 20Hz: 15W
- Amplifier Application: PUSH-PULL
- Valve / Tube Application ECL86 / EL84 valves / Tubes in Push-Pull mode (e.g. Rogers HG88 Mk2)
- CLAMP Mounting
- Primary Impedance: 8k C.T. with 43% screen taps
- Secondary Impedance: 4, 8, 16 ohm taps
- DC Resistance (Ohms +/- 15%)
- (7 – 12):349
- (18 – 13): 0.73
- Core Materials: Manufactured with grain orientated silicon steel laminations for reduced hum, low distortion, low insertion loss and stray field.
- Mass: 1.3kg
- Brand: Oxford Electrical Products (CARNHILL GROUP)
- Made in OXFORD, ENGLAND (UK)
Oxford Electrical Products (OEP) was founded in 1982, and has established itself as a globally trusted brand for the design and manufacture of transformers and power supplies.
This transformer is part of a specialist range of audio transformers for valve amplifiers, that are designed and manufactured from OEP’s factory in Oxford, England. This design and manufacturing expertise enables OEP to maintain a close control over production, ensuring that each transformer is manufactured to the strict specifications that their designer intended. This build quality directly governs the efficiency of the transformer for excellent sound quality and reliability.
