Description
This Audio / Output transformer is part of a specialist range of output transformers for use with PUSH-PULL Hi-Fi amplifiers.
Specially designed for use with Hi-Fi valve amplifiers. Hi-Fi typically require output transformers with a frequency (bandwidth) of 20Hz to 20kHz.

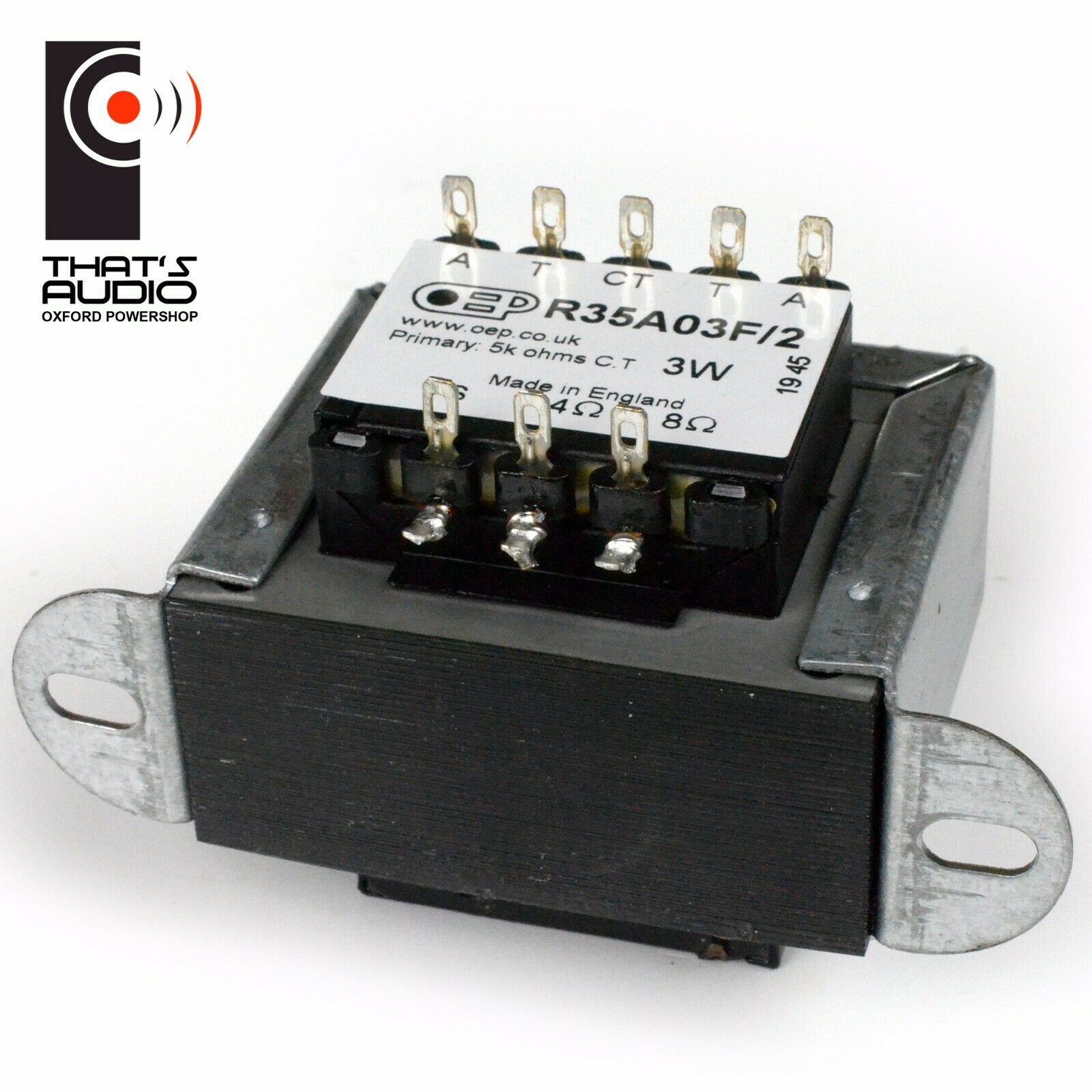

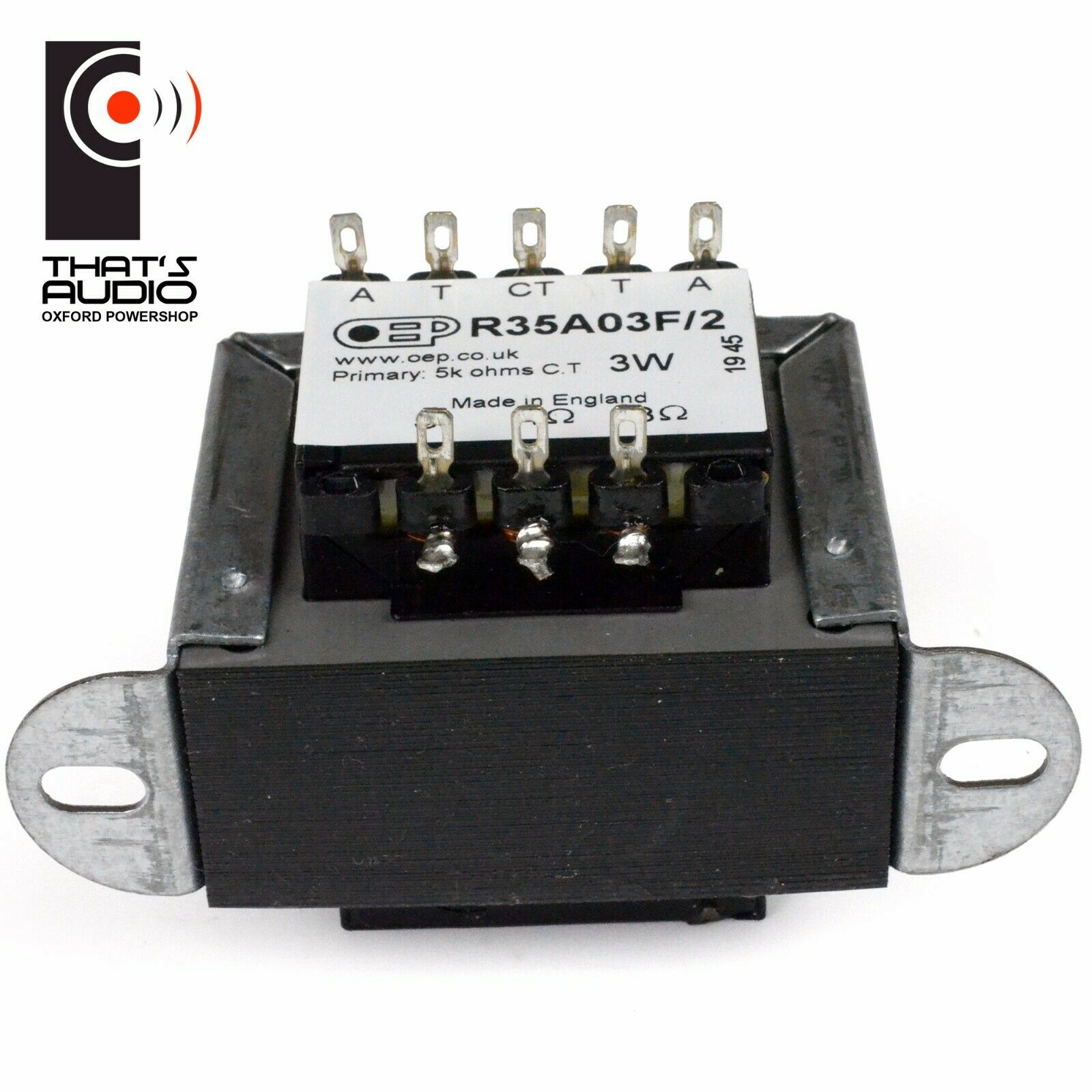

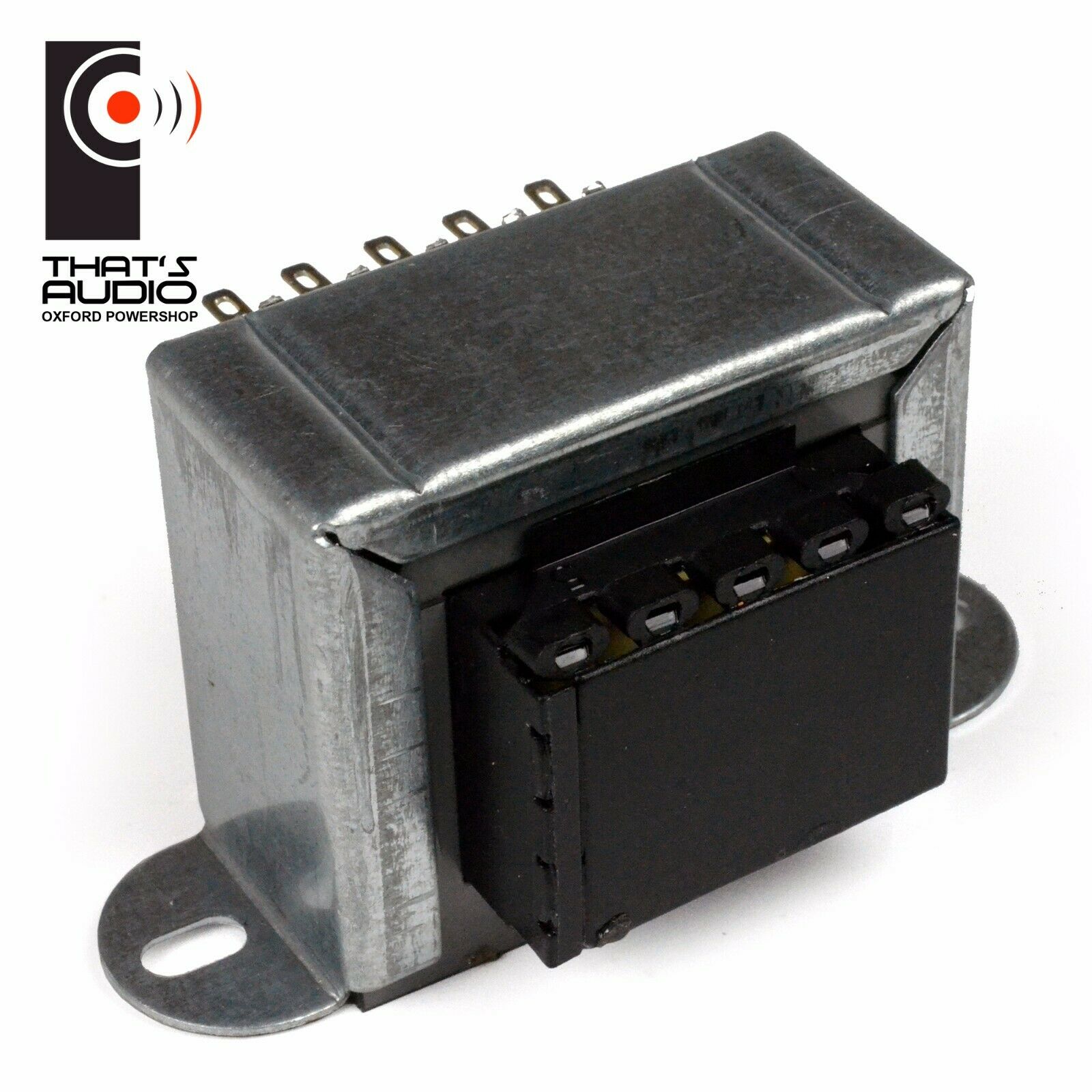

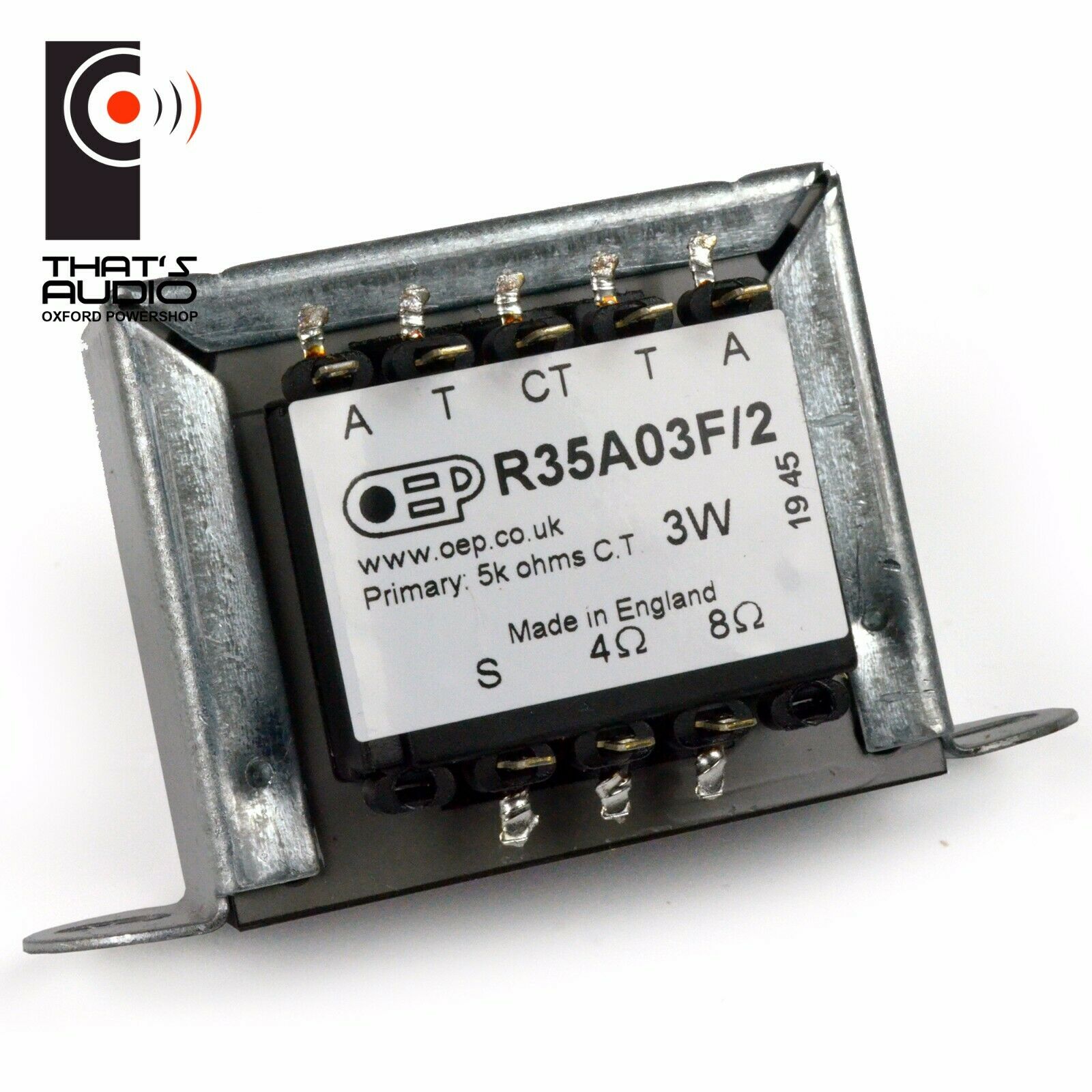

- AUDIO / OUTPUT Transformer
- MODEL: R35A03F/2
- For Hi-Fi Amplifiers
- Maximum Power: 3W
- Amplifier Application: PUSH-PULL
- Valve / Tube Application: ECL82 / UCL82 Valves / Tubes in Push-Pull mode
- CLAMP Mounting

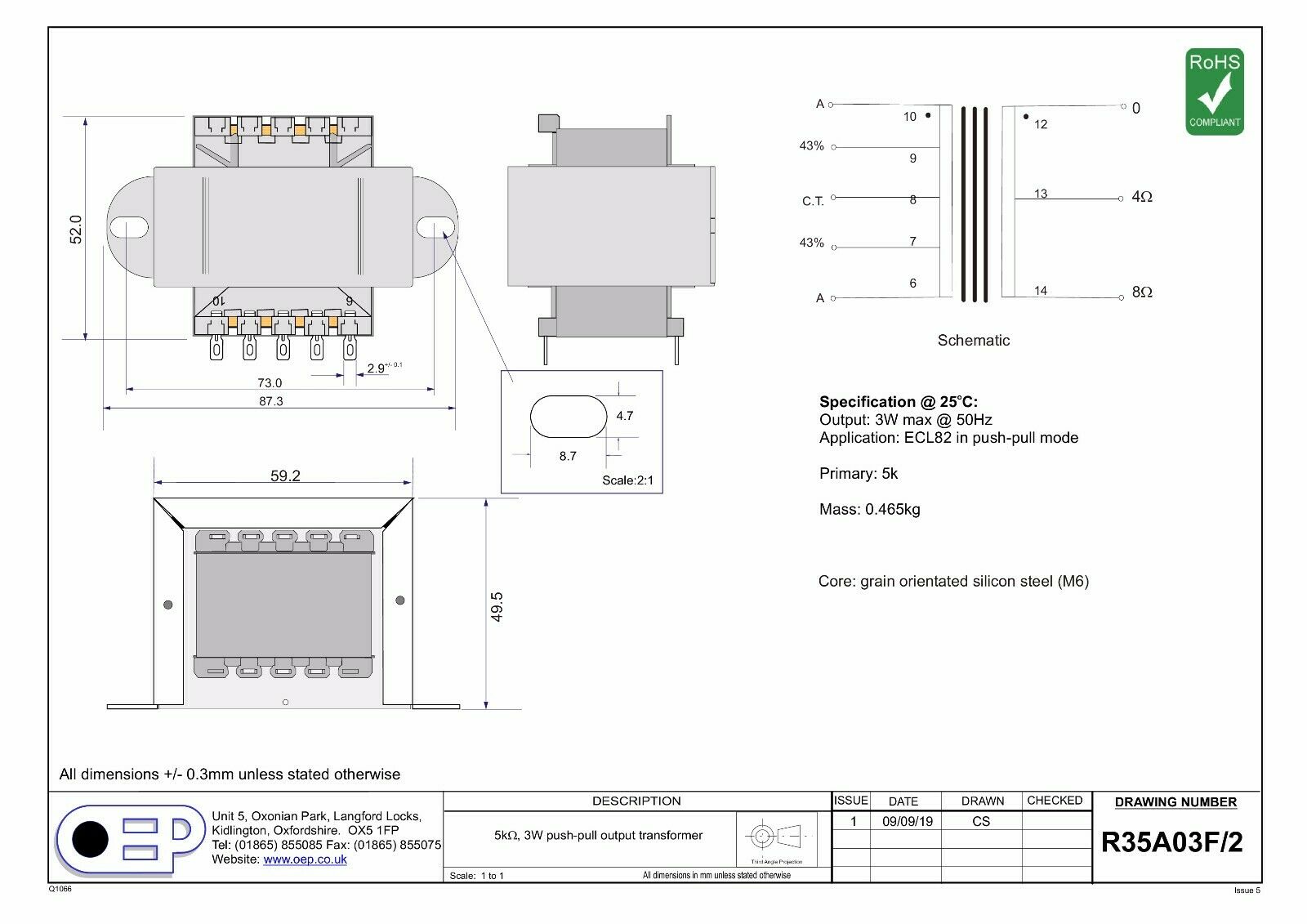

- Primary Impedance: 5k C.T. Primary tapped at 43% relative to centre tap,
- Secondary Impedance: 4, 8 ohm taps
- Core Materials: Manufactured with grain orientated silicon steel laminations for reduced hum, low disttortion, low insertion loss and stray field.
- Mass: 0.465kg
- Brand: Oxford Electrical Products (CARNHILL GROUP)
- Made in OXFORD, ENGLAND (UK)
Oxford Electrical Products (OEP) was founded in 1982, and has established itself as a globally trusted brand for the design and manufacture of transformers and power supplies.
This transformer is part of a specialist range of audio transformers for valve amplifiers, that are designed and manufactured from OEP’s factory in Oxford, England. This design and manufacturing expertise enables OEP to maintain a close control over production, ensuring that each transformer is manufactured to the strict specifications that their designer intended. This build quality directly governs the efficiency of the transformer for excellent sound quality and reliability.
