Description

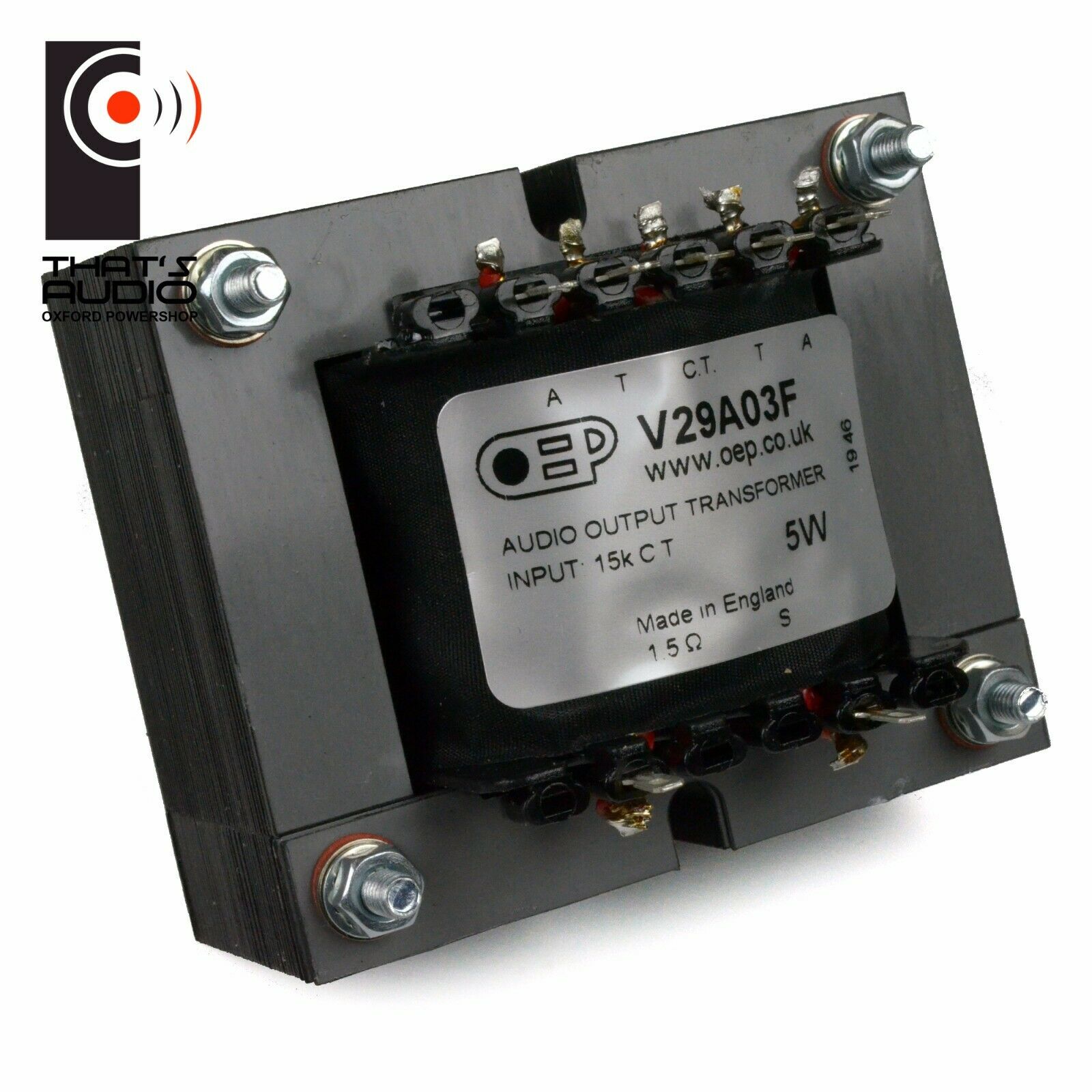

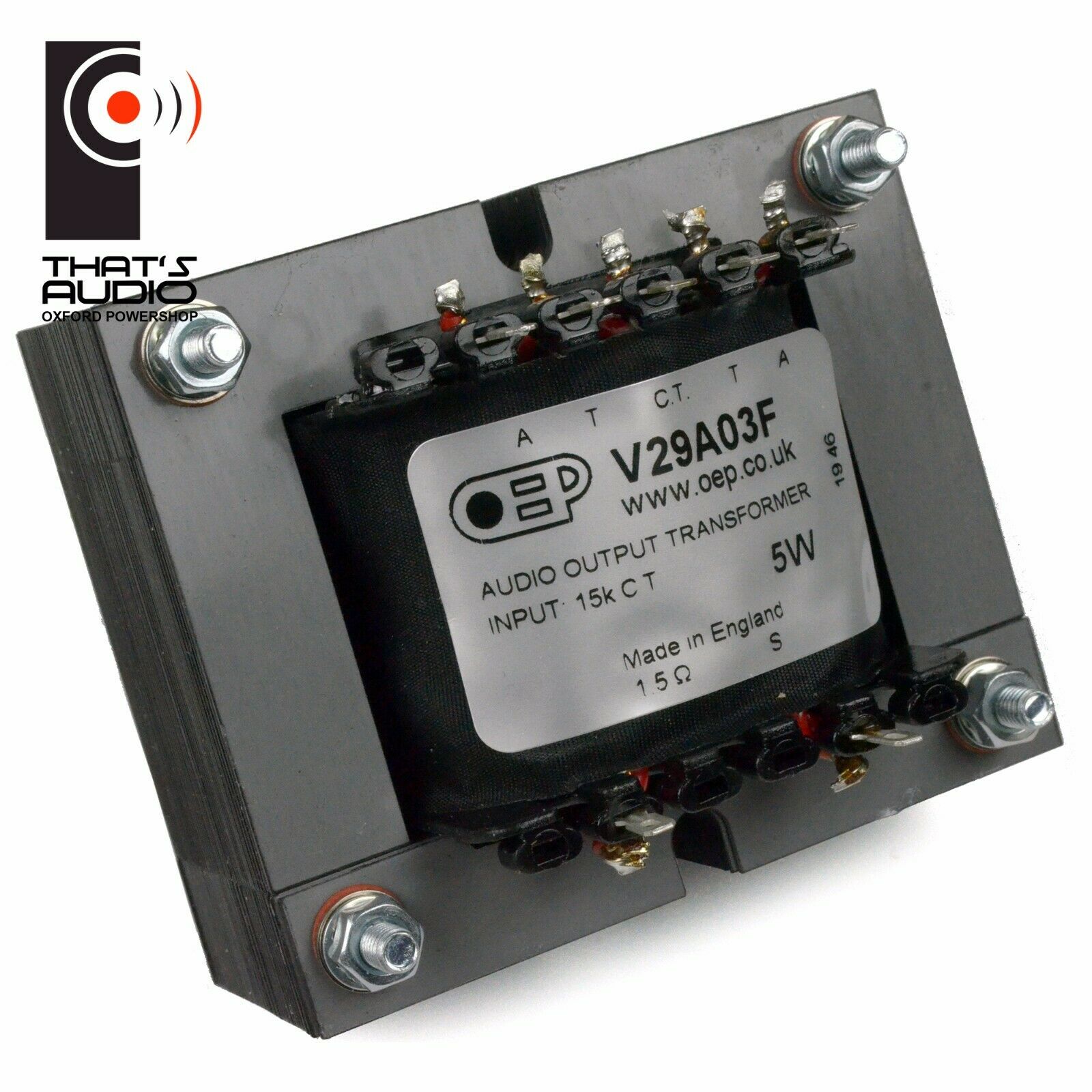

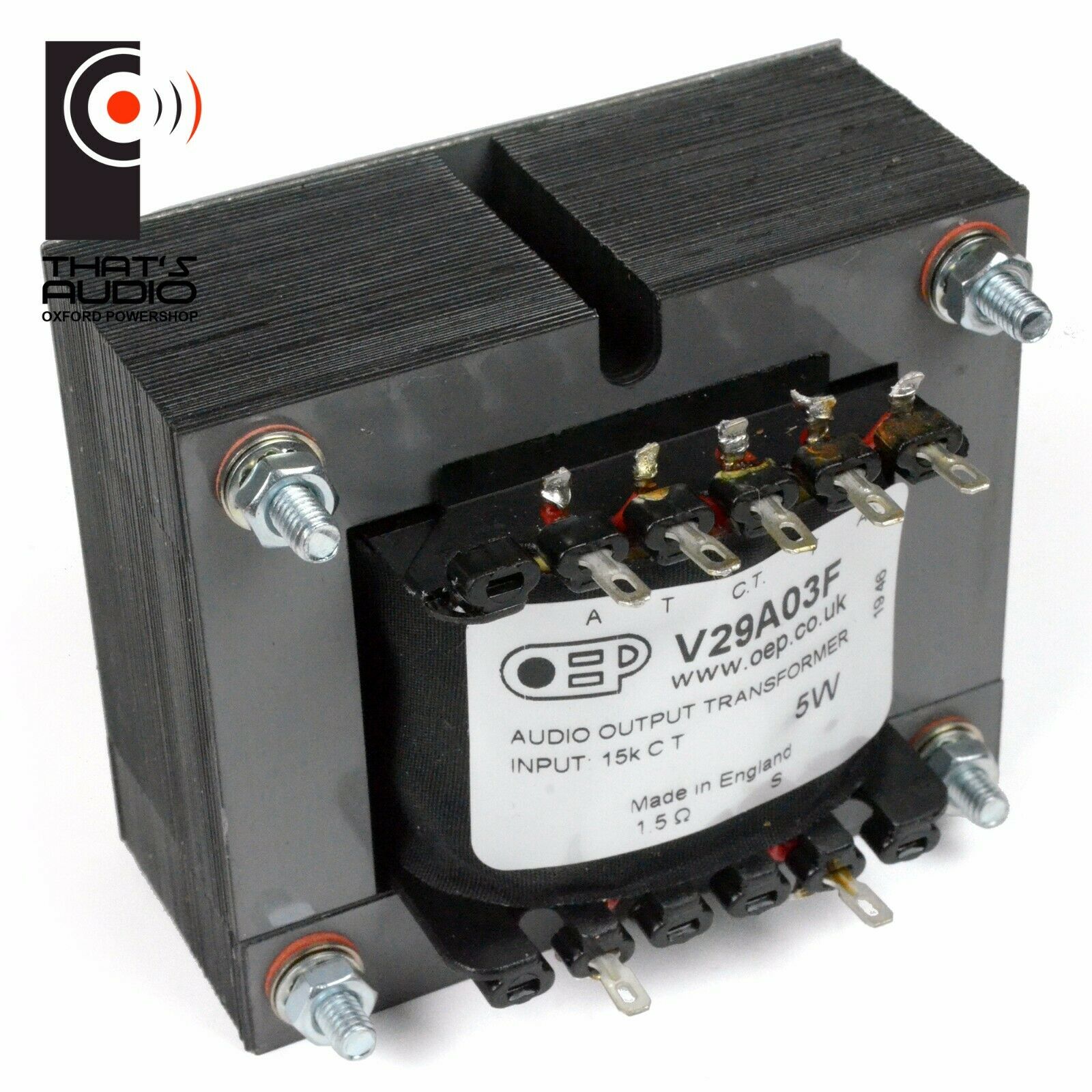

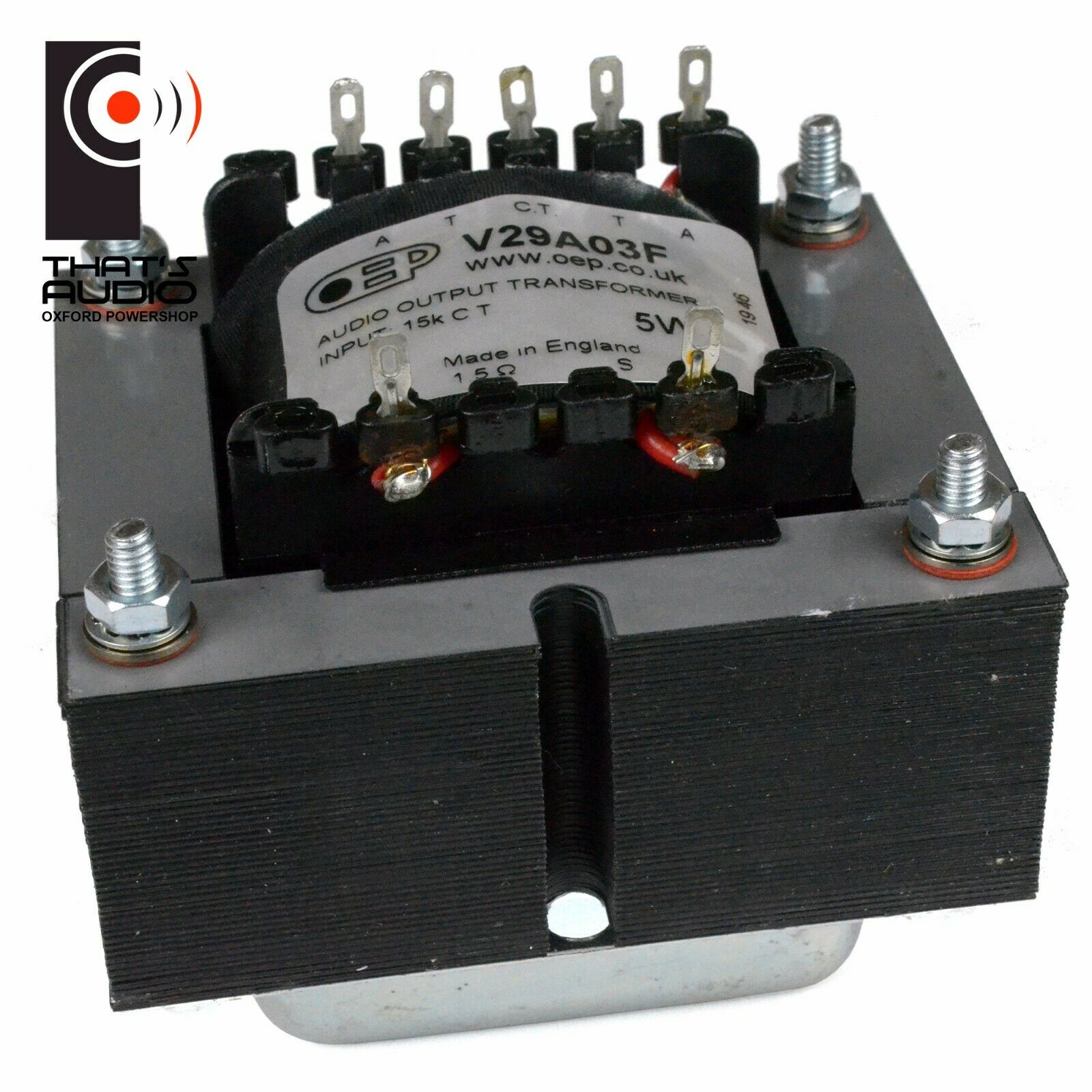

Amplifier Audio Output Transformer OEP V29A03F
This Audio / Output transformer is part of a specialist range of output transformers for use with PUSH-PULL Hi-Fi amplifiers.
Specially designed for use with Hi-Fi valve amplifiers. The V29A03F is based on the original winding of the output transformer found in PYE’S BLACK BOX Mk2 amplifier with ultra linear taps. With this output transformer the designer opted to use a single winding (as this is how PYE did it) and so replicate as close as possible to the original design. Ideally the windings would be identical – 2 wires wound simultaneously, known as bifilar, thus producing identical DC resistances, coupling / capacitance etc.
- AUDIO / OUTPUT Transformer
- MODEL: V29A03F
- For Hi-Fi Amplifiers
- Maximum Power: 5W
- Amplifier Application: PUSH-PULL
- Valve / Tube Application: EL42 Valves / Tubes in PUSH-PULL mode, e.g. PYE BLACK BOX MK I and MK II
- CHASSIS Mounting

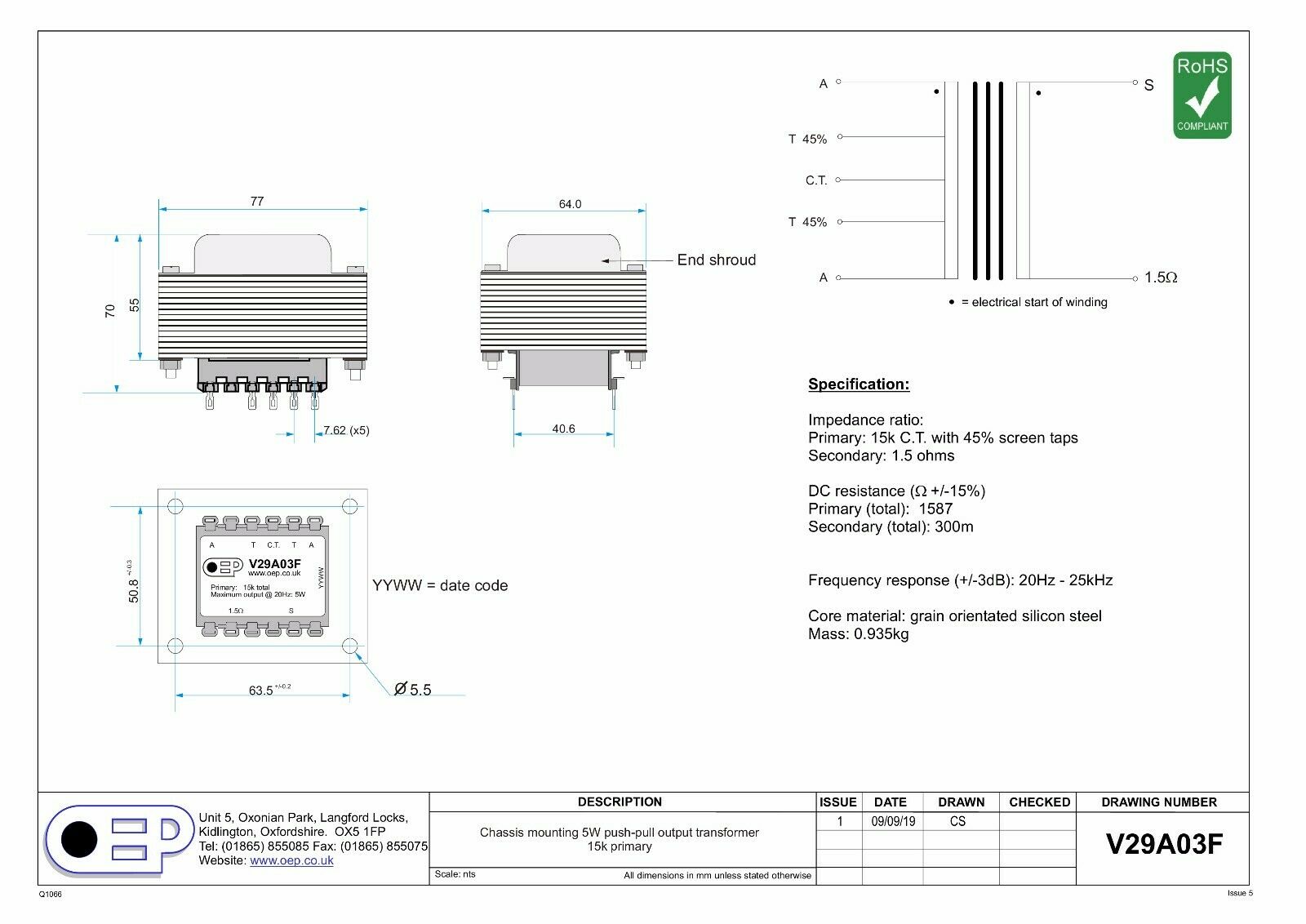

- Primary Impedance: 15k C.T. with 45% screen taps, Secondary: 1.5 ohms
- Secondary Impedance: 1.5
- Core Materials: Manufactured with grain orientated silicon steel laminations for reduced hum, low disttortion, low insertion loss and stray field. Supplied with 4 x M4 x 45mm screws / washers / nuts
- Mass: 0.935kg
- Brand: Oxford Electrical Products (CARNHILL GROUP)
- Made in OXFORD, ENGLAND (UK)
Oxford Electrical Products (OEP) was founded in 1982, and has established itself as a globally trusted brand for the design and manufacture of transformers and power supplies.
This transformer is part of a specialist range of audio transformers for valve amplifiers, that are designed and manufactured from OEP’s factory in Oxford, England. This design and manufacturing expertise enables OEP to maintain a close control over production, ensuring that each transformer is manufactured to the strict specifications that their designer intended. This build quality directly governs the efficiency of the transformer for excellent sound quality and reliability.
