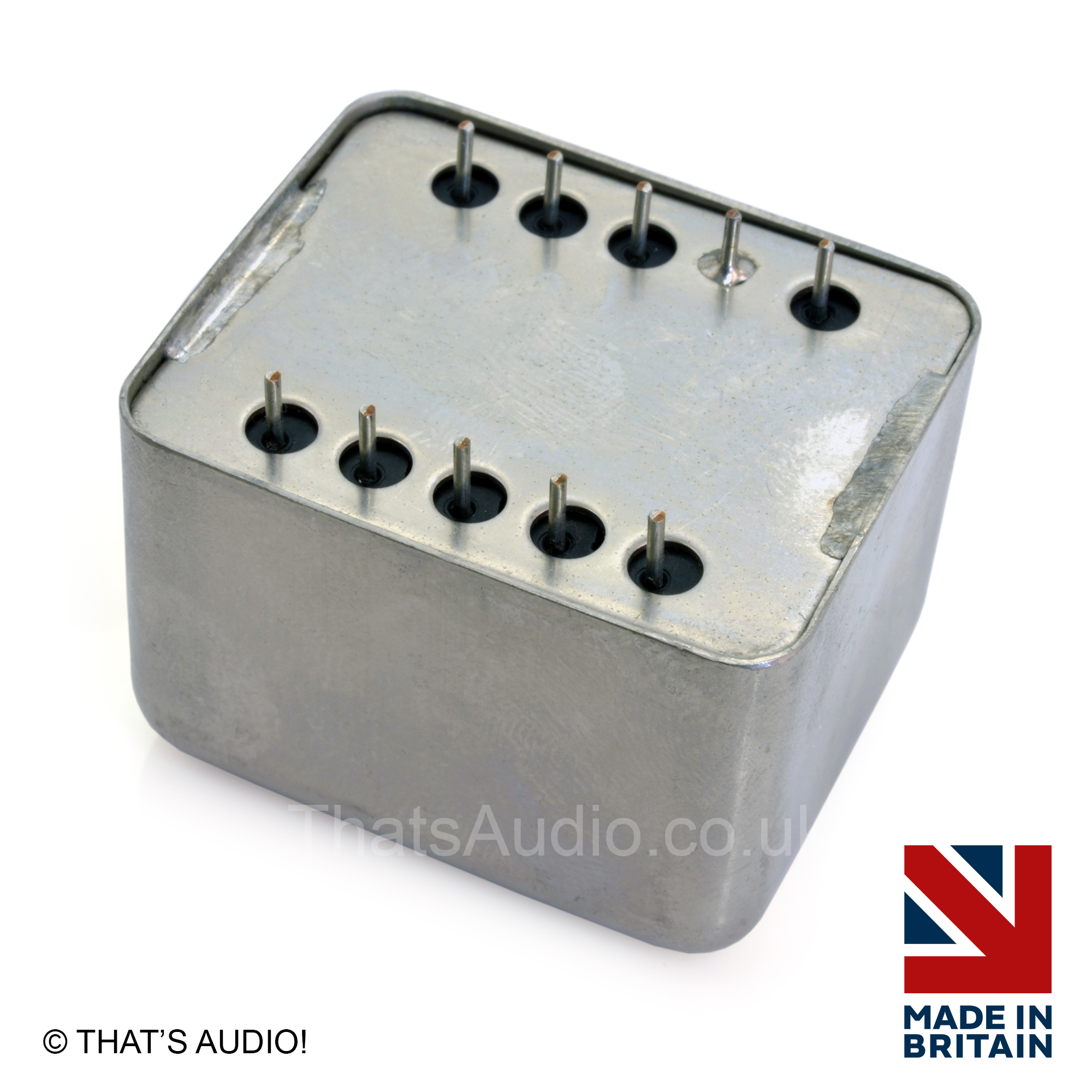

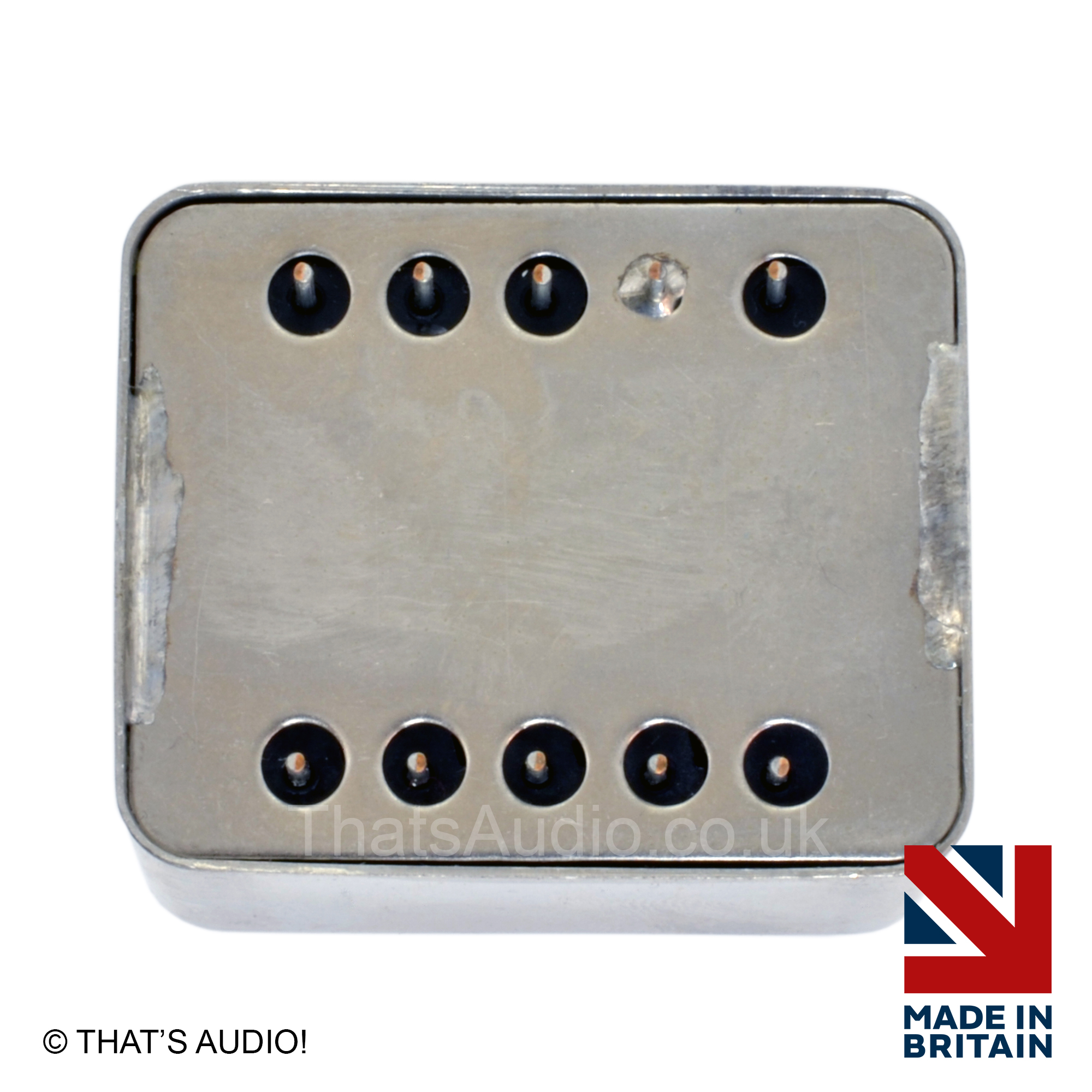

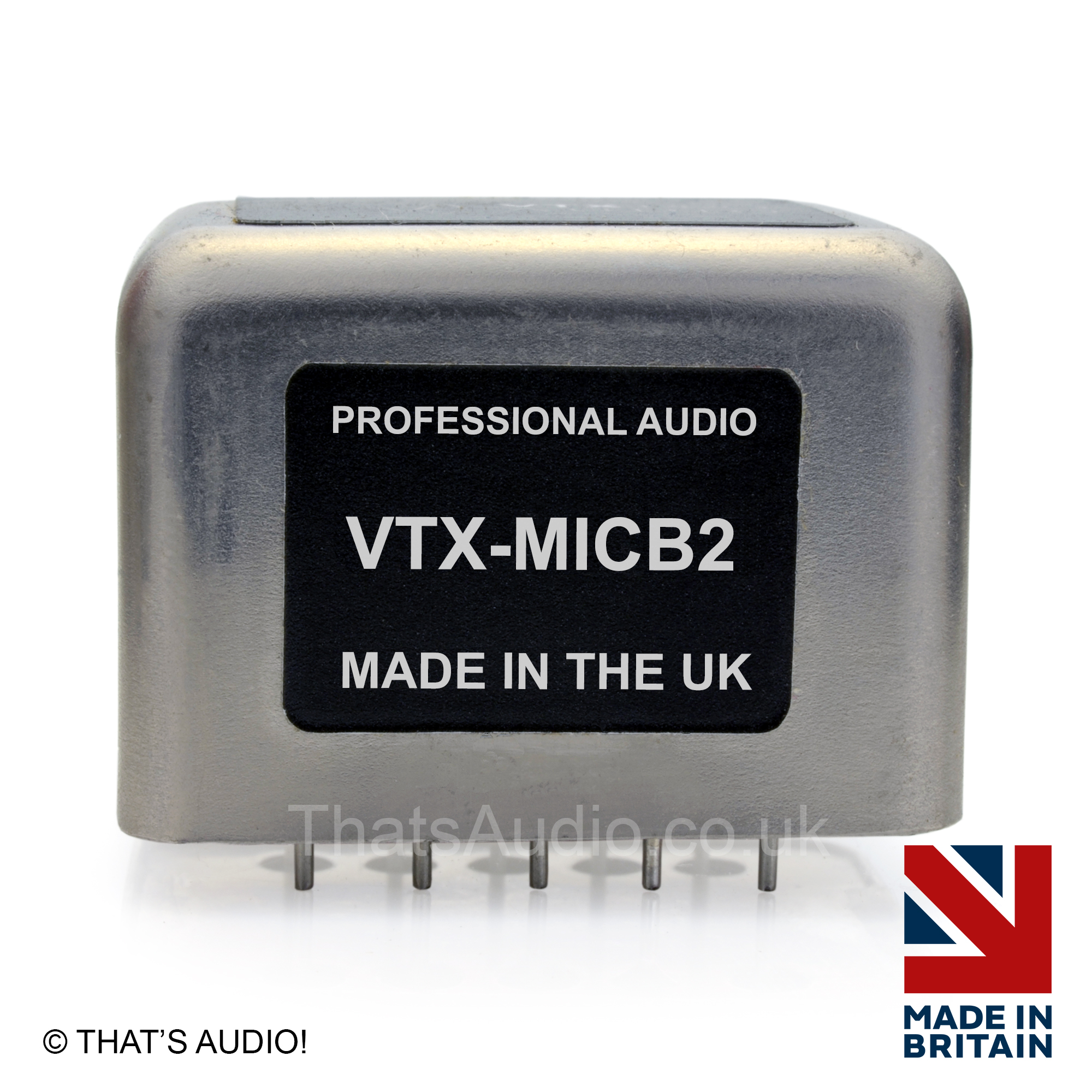

Microphone Bridging Transformer VTXMICB2
Microphone Bridging Transformer VTXMICB2 – Used in audio applications to connect a microphone to an audio input without heavily loading the microphone’s output. It’s designed to “bridge” the connection by presenting a high impedance to the microphone while driving the input stage of the connected device effectively. 1:1:1 150Ohm 2dBu
- High performance microphone input transformer
- Input +10dBu max (20Hz) <1%THD
- Fitted with multiple electrostatic screens
- Low distortion Mu-metal core
- Mu-metal screening can reduces electrical noise by up to 30dB
- Hi-pot, primary to secondaries: 500VDC
- Windings to screens+can: 500VDC
- Operating temperature range: 0 to +70 C
- Storage temperature range: -25 C to +120 C
- Mass = 0.11kg
- Tolerance on can dimensions: +/- 0.5mm
Transformer Data Sheet – Click to open and DOWNLOAD
Microphone Bridging Transformer VTXMICB2 Electrical characteristics
- Turns ratio: 1 to 1 to 1
- Optimum source impedance: 150 Ohm
- DC resistance (Ω+/-15%)
- Primary: 31
- Secondary 1: 53
- Secondary 2: 58
- Input impedance (Ω): 551 (typ.) @ 1kHz
- Output impedance (Ω211 (typ.) @ 1kHz
- Frequency response: 16Hz – 60kHz (+/-0.15dB)
- Voltage gain @ 1kHz, 0dBu: 0.76dBu (typ.)
- Maximum input @ 20Hz, <1% THD: +10dBu
- Insertion loss: 1dB (typ.)
- Leakage inductance (1 – 2) @ 1kHz: 880uH (typ.)
- Capacitance @ 10kHz, 0.1V:
- Cp-scr1: 300pF (typ.)
- Cs1-scr2: 100pF (typ.)
- Cs2-scr3: 170pF (typ.)
