Description

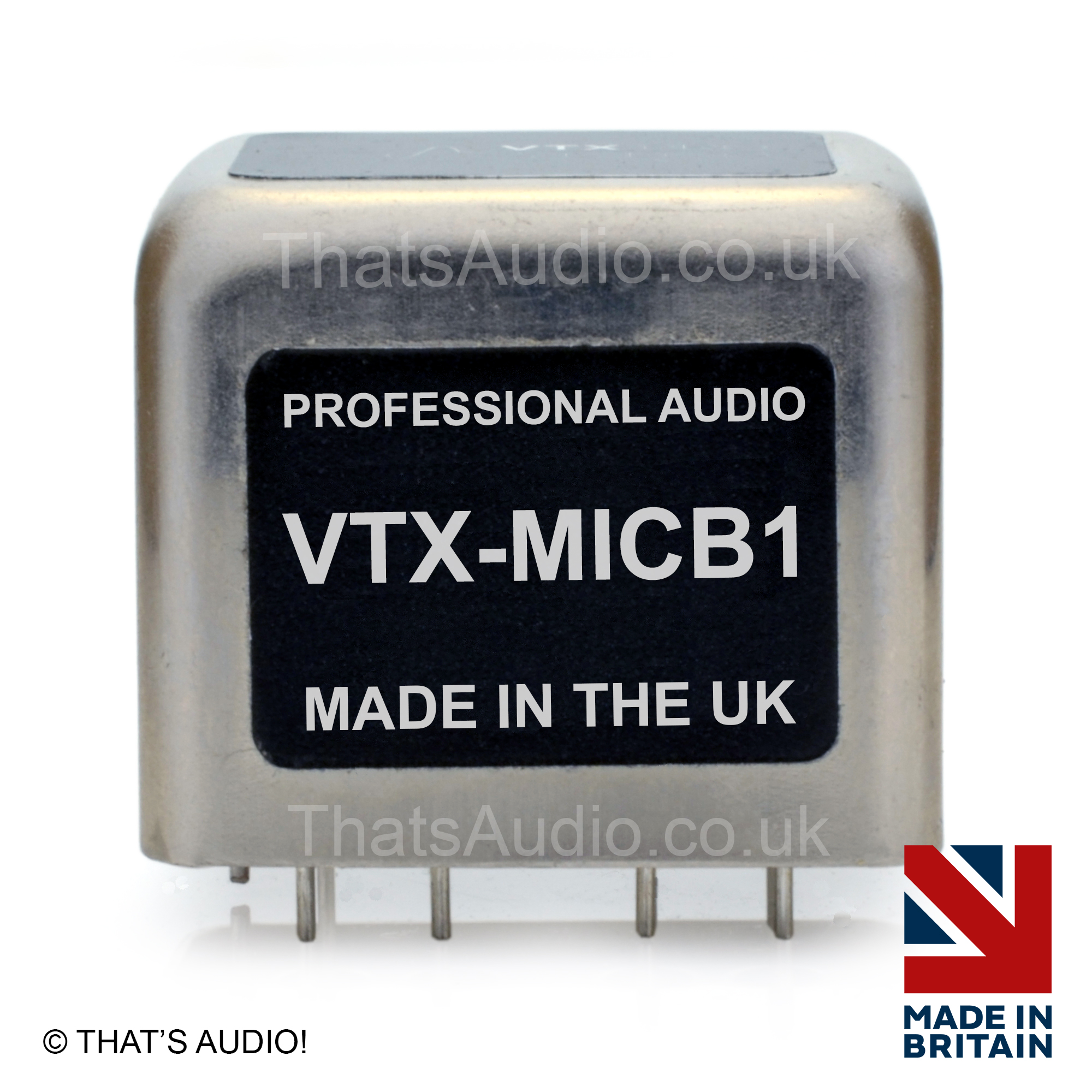

Microphone Bridging Transformer VTX-MICB1
Microphone Bridging Transformer VTXMICB1 – Used in audio applications to connect a microphone to an audio input without heavily loading the microphone’s output. It’s designed to “bridge” the connection by presenting a high impedance to the microphone while driving the input stage of the connected device effectively. 1:1 150W 0dBu
- Provides isolated balanced output
- Low insertion loss
- Can be used in reverse for 1C.T. : 1
- Fitted with multiple electrostatic screens
- Low distortion Mu-metal core
- Mu-metal screening can reduces electrical noise by up to 30dB
- Hi-pot, primary to secondary: 500VDC
- Windings to screens+can: 500VDC
- Operating temperature range: 0 to +70 C
- Storage temperature range: -25 C to +120 C
- Mass = 0.058kg
Transformer Data Sheet – Click to open and DOWNLOAD
Electrical characteristics Microphone Bridging Transformer VTXMICB1
- Turns ratio: 1 to 1 C.T.
- Optimum source impedance: 150Ω
DC resistance (Ω+/-15%)
- Primary: 53
- Secondary: 53
- Input impedance (Ω): 1.08k (typ.) @ 1kHz (1k load)
- Output impedance (Ω): 250W (typ.) @ 1kHz
- Voltage gain @ 1kHz, -0.59dBu (typ.) (3k load)
- Maximum input @ 20Hz, 150Ω, <1% THD: 5dBu
- Insertion loss (1 to 1): 0.9dB (typ.)
- Leakage inductance @ 1kHz: (8 – 5) (1/2/3/4 S/C) 1.2mH (typ.)
- Capacitance @ 10kHz, 0.1V:
- Cp-s: 45pF (typ.)
- Cp-screen 1: 80pF (typ.)
- Cs-screen 2: 80pF (typ.)
