OEP’s Microphone Input Transformer A187A36C

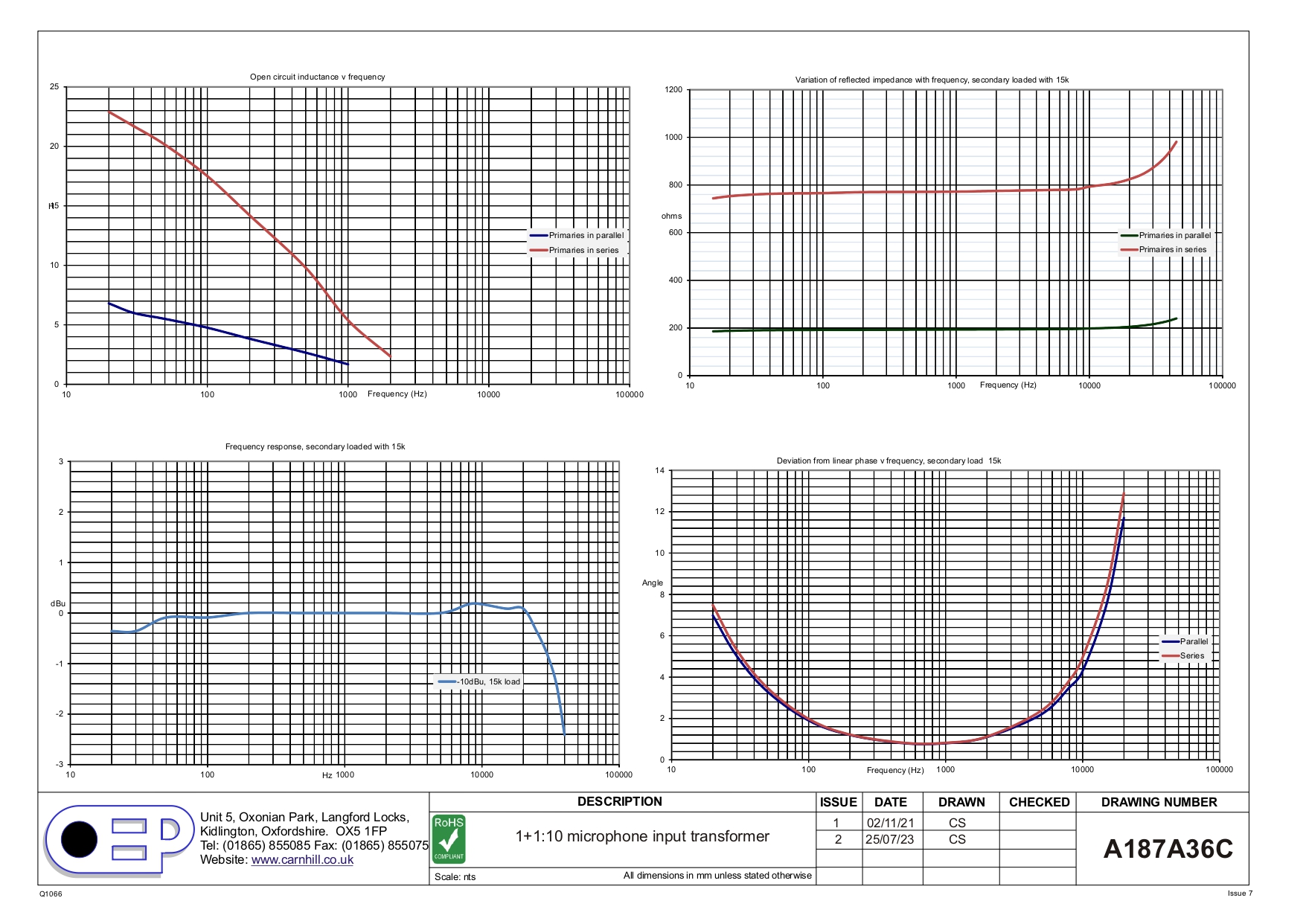

CLICK HERE for the Product DATA SHEET
Electrical characteristics
- Winding ratio: 1+1:10
- Impedance ratio: 150Ω / 600Ω to 15kΩ
- DC resistance (Ω +/-15%):
- Primaries: 42.5 + 42.5
- Secondary: 2270
- Leakage inductance: 2.8mH (typ.) @ 1kHz
- Maximum input @ 20Hz (8-5) <1% THD: -2.5dBu
- Voltage gain @ 1kHz, 150Ω, -10dBu: 19.6dB (typ.)
- Interwinding capacitance:
- Primaries to secondary: 6pF (typ.) @10kHz (screen earthed)
- Primaries to screens: 159pF (typ.) @ 10kHz
- Secondary to screens: 133pF (typ.) @ 10kHz
- Proof voltage
- Primaries to secondary: 250VDC
- Windings to screen: 250VDC
- Operating temperature range: 0 to +70oC
- Unit mass: 0.056kg
- Transformer shielded with mu-metal can.
- N.B. Do not pass DC through windings.
